Overview

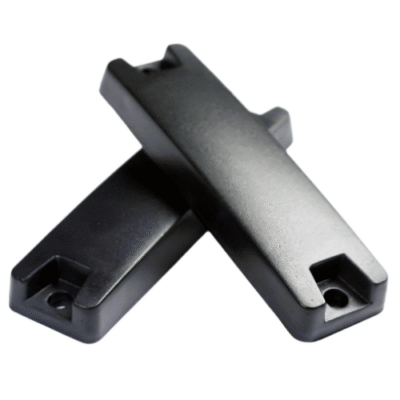

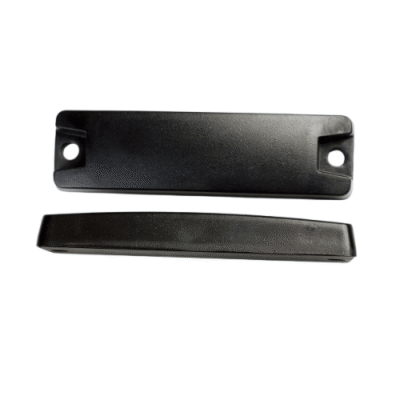

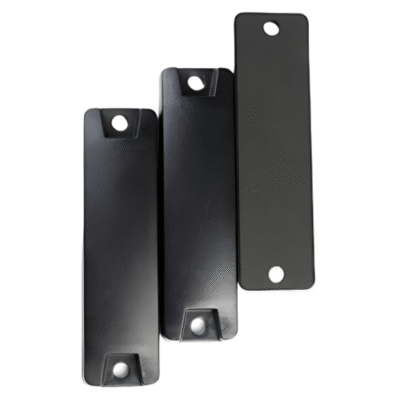

The Inventory Master Rugged RFID UHF Tag for Container provides a variety of industrial RFID tags that offer a rugged and robust industrial identification solution for applications of duress. The industrial RFID Tags can serve on industrial assets placed outside in the summer sun, frozen winters. The industrial RFID tags are suited for use in factory automation and manufacturing processes due to their slim design and their ability to read and write at a long range. Applying PC or ABS+PC or PA66 or PPS material as the outer casing, they can resist a rugged environment.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Class 1 Gen 2, ISO18000-6C |
| IC Type | Impinj Monza R6-P |
| Material | PC |
| Mounting Methods | Adhesive, Screw |
| Memory | EPC 128 bits, User 64 bits, TID 96 bits |
| Applicable Surface | Metal Surface |
| Read Range(Fixed Reader) | 32.1 ft (9.8 m) |
| Read Range(Handheld Reader) | 19.6 ft (6.0 m) |
| Certifications | Reach, RoHS, CE |
| Working Temperature | -22 °F to 158 °F (-30 ℃ to 70 ℃) |
| Storage Temperature | -22 °F to 158 °F (-30 ℃ to 70 ℃) |
| Size | 3.4 in X 0.9 in X 0.4 in (87 mm X 24 mm X 11 mm) |
| Weight | 0.6 oz (19 g) |
