Overview

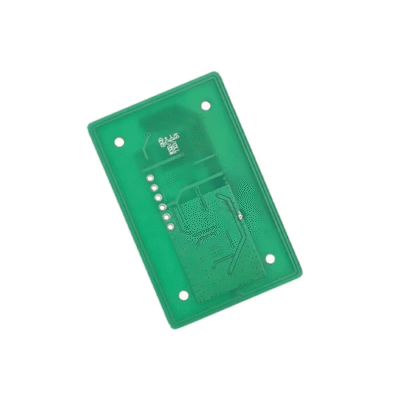

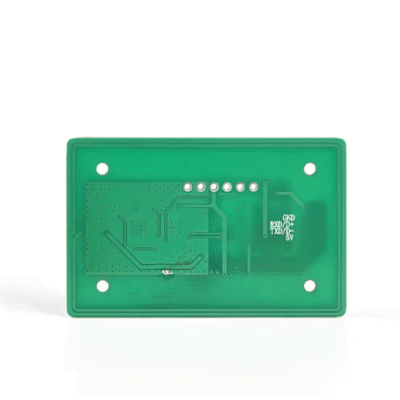

TIMLMOD-116 is a series of RFID reader modules with a Wiegand communication port. It can read and support the 125 KHz standard of contactless cards. The impedance between the RF circuit and antenna was tuned by an impedance analyzer, so the module has excellent performance and stability. It’s easier and more widely accessible for control, RFID, electronic door lock, attendance, metro, etc.
Technical Specifications
| Frequency | 125 KHz |
| Protocol | EM4100//TK4001 etc. |
| Working Voltage | 5 V |
| Output Format | Wiegand 26 or Wiegand 34 |
| Support Cards | TK 4100 and EM 4100 |
| Working Current | 100 mA |
| Reading Range | 0 in to 3.94 in (0 mm to 100 mm) |
| Distance Of Transmission | ≥ 328.08 ft (100 m) |
| Operating Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Storage Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Size | 2.01 in x 1.46 in x 0.04 in(51 mm x 37 mm x 1 mm) |
| Weight | 0.70 oz (20 g) |
