Overview

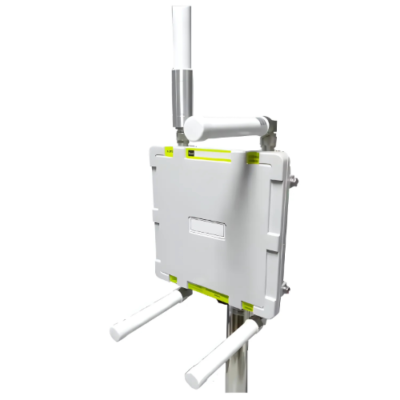

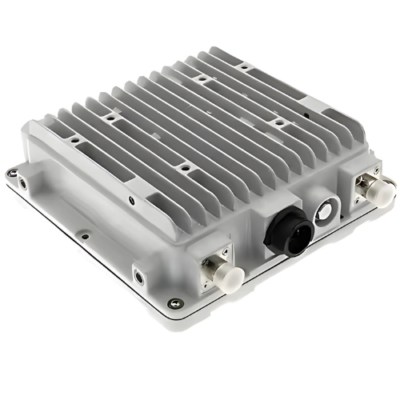

The Inventory Master multi-Power 8 Channel Base Station LoRaWAN Gateway with LTE & PoE Support is an outdoor gateway based on low power Wan LoRaWAN protocol, which adopts IP67 waterproof. The Shell supports PoE power supply and can connect to the standard LoRaWAN terminal for two-way communication.
Technical Specifications
| Technology | LoRa |
| Protocol | LoRaWAN 1.0.2 |
| Frequency | EU 433 or CN 470 or EU 868 or US 915 or AS 923 or AU 915 or KR 920 or IN 865 |
| Chip | 1 x SX 1301 processor, 8 upload 1 download, 2 x SX 125 x front end |
| Power | 25 dBm (Max.), typical value 23 dBm |
| Sensor | – 139 dBm (min) at SF 12, width 125 KHz |
| Comm Distance | City 16,396.8 ft. (2 km to 5 km) Field 6.21 mi (5 km to 10 km) |
| Dot Quantity | 5000 (8 channels typical) |
| CPU | Industrial i.MX 6 ULL Cortex A 7 |
| HZ | 586 MHz to 900 MHz |
| Inner Storage | 16-bit DDR 3 L 256 MB (up to 512 MB) |
| Storage | eMMC 4 GB (up to 64 GB) |
| Communications | LoRa up, LAN or LTE down, WIFI AP, GPS |
| LTE | 4G Module LTE TDD or LTE FDD or HSPA plus or TD SCDMA or EVDO and GSM or GPRS or EDGE frequency, support LTE CAT 4 (download 150 Mbps) |
| SIM Card | Self-elastic Micro SIM card holder (SIM card notch facing outwards, gold finger facing downwards) |
| Lightning Protection Module | 10 KV Lightning protection design |
| Internal Expansion | 1 Fast Ethernet port, 4 USB 2.0, 1 Debug MicroSD card slot, three axis acceleration sensor modules, temperature and humidity detection module, 4 UART, 1 SPI, 1 IIC, LCD, GPIO, 2 x MiniPCIE expands 16 channels or 24 channels |
| System | Ubuntu 16.04 LTS Long term support for the stable version |
| Inner Core | Linux 4.15 |
| Power Supply | POE power supply (48 V or 0.5 A 24 W plus 4, 5 to 7, 8 pin) Optional DC 12 V power supply |
| Whole Machine Power Consumption | Less than 5 W (typical value) |
| Working Moisture | (0 % to 95 %) RH (No condensation) |
| Protection | IP 67 |
| Shell Materials | Die cast aluminum housing |
| Installments | Pole or bracket installation |
| Working Temperature | – 40 °F to 185 °F (- 40 ℃ to 85 ℃) |
| Measurements | 8.46 in x 8.46 in x 3.15 in (21.5 cm x 21.5 cm x 8 cm) (no antenna) |
