Overview

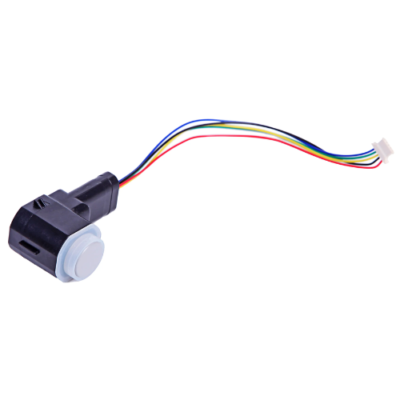

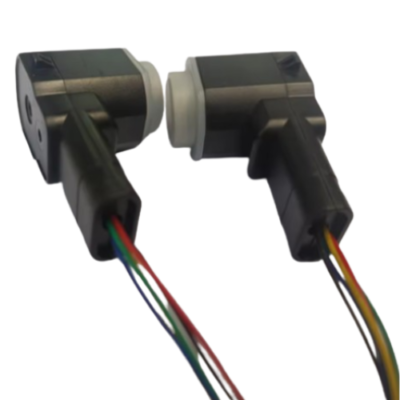

The Inventory Master ultrasonic obstacle detection sensor with high-quality robot navigator short blind zone ultrasonic sensor for obstacle detection high quality obstacle avoidance robot using ultrasonic sensor.
Features
- TTL output (always transmit)
- Small blind spot
- Dual angle
Technical Specifications
| Absolute Accuracy | ± 1 % (Built in temperature drift compensation) |
| Repeatability | ± 0.5 % of full-scale value |
| No-load Current | ≤ 25 mA |
| Working Voltage | 5 V to 12 V |
| Angle | X = 75° Y = 45° |
| Type of Output | TTL 232 |
| Protection grade | IP65 |
| Wire Length | 11.81 in (30 cm) |
| Resolution Ratio | 0.39 in (1 cm) |
| Detection Range | 5.91 in to 39.37 in (15 cm to100 cm) |
| Blind Zone | 0 in to 5.91 in (0 cm to 15 cm) |
| Working temperature | −4 ∘F to 158 ∘F (-20 ℃ to +70 ℃) |
| Weight | 0.99 oz (28 g) |
