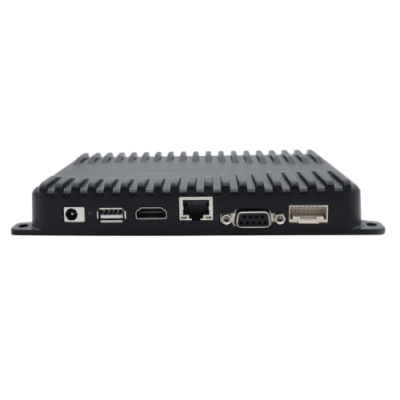

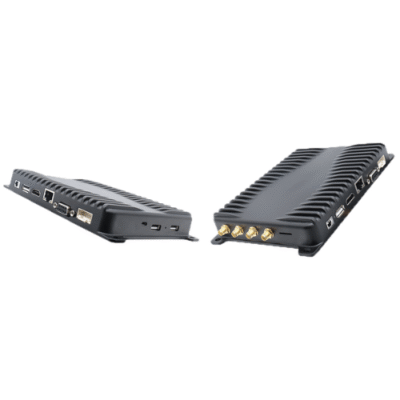

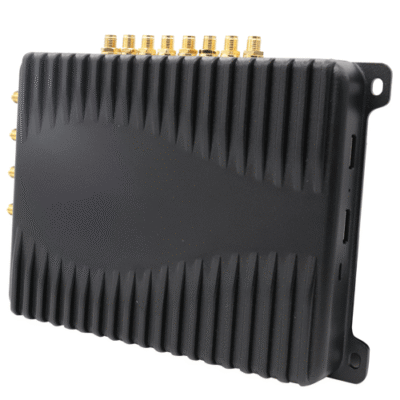

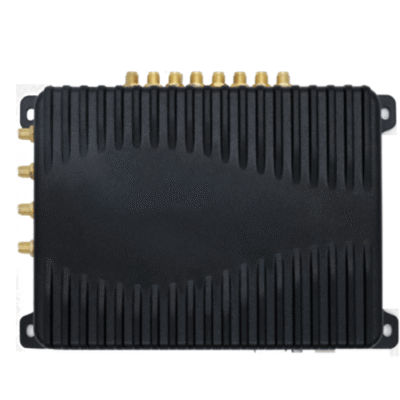

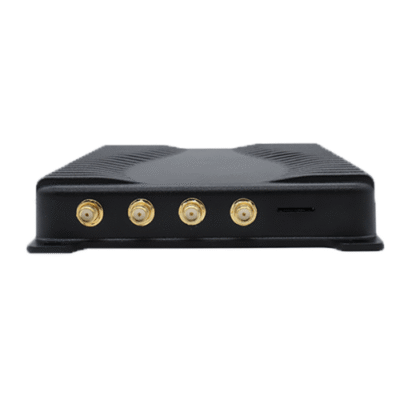

Overview
Discover versatility with our device: 2GB RAM, 16GB ROM, HDMI output, 4G support, GPS/GLONASS, dual-band WiFi, and UHF RFID capability.
Technical Specifications
| O.S. | Android 10.0 |
| Processor | Quad-core 1.6GHz |
| Memory | RAM: 2GB ROM: 16GB |
| Display Output | HDMI D Type interface; support 1920 x 1080P HD video output |
| Slot | SIM x 1 |
| Interface | GPS antenna, main and auxiliary antenna for 4G communication, WiFi or Bluetooth antenna, 4G communication SIM card slot, power interface DC JACK, USB interface, HDMI interface, TCPIP network interface RJ45(PoE supply mode), serial communication interface RS232 (DB9 Female), GPIO interface, debugging or download USB interface, USB interface 2, system RESET button, SMA antenna interface ANT1~ANT8 |
| Network Connections | 1. WWAN supports 4G full network, with main and auxiliary 4G antenna interface 2. Positioning：GPS + GLONASS or GPS + BeiDou 3. Support 2.4G or 5G dual-band WIFI WIFI network protocol: 802.11 a/b/g/n/ac Support WAPI & SMS4 encryption Support manual change of IPv6 addresses |
| Data Capture Specifications | |
| RFID | Read-write (UHF) |
| Frequency | 840 MHz to 960 MHz (adjustable based on the requirements of different countries or regions) |
| Protocol | Support ISO18000-6C and ISO18000-6B |
| RF Output | Maximum: 33 dBm |
| Dimensions | 7.0 in x 5.0 in x 1.1 in (180 mm x 128 mm x 28 mm) |
