Features
- Supports dual-band Wi-Fi (2.4GHz & 5GHz) with speeds up to 3000Mbps
- Designed for M2M applications with robust VPN capabilities
- Compact industrial-grade design for outdoor use
Technical Specifications
| CPU | Qualcomm IPQ5018 |
| Flash | 32MB SPI NOR Flash + 128MB NAND flash |
| RAM | 512MB DDR3L memory |
| Standard & Protocols | Wi-Fi 802.11 a/b/g/n/a/ax |
| Encryption Type | WPA2-PSK, WPA2, WPA3, WPA-PSK, WPA, WEP |
| LAN Ports | 1 × 10/100/1000Mbps |
| Max. LAN Data Rate | 1900Mbps |
| With Modem Function | Yes |
| Wi-Fi Supported Frequency | 2.4G & 5G |
| 2.4G Wi-Fi Transmission Rate | 1200 Mbps |
| Type | Wireless |
| Supports WDS | No |
| Supports WPS | No |
| Wi-Fi Transmission Standard | Wi-Fi 802.11 ax |
| Private Mold | Yes |
| Function | Firewall, QoS, VPN, SDK available |
| WAN Ports | 1 × 10/100/1000Mbps |
| 5G Wi-Fi Transmission Rate | 2167Mbps |
| 5G | 5G SA/NSA |
| SIM Card Slot | 1 × SIM/UIM |
| Wi-Fi Standard | 802.11 a/b/g/n/ac/ax |
| Wi-Fi | Dual band Wi-Fi 2.4GHz and 5GHz |
| Wi-Fi Speed | 3000 Mbps |

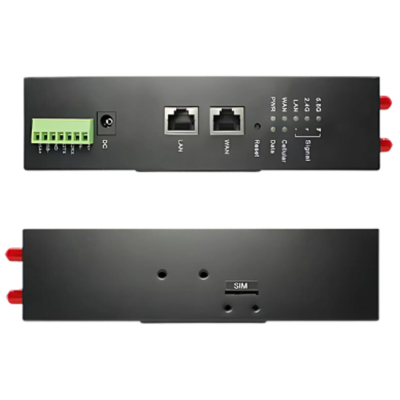

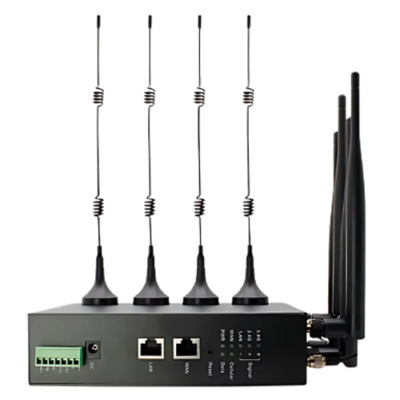

| Interfaces | 2 × 1GbE RJ45 Port (1 WAN and 1 LAN) 4 × SMA-MALE Antenna connector (Wi-Fi) 4 × SMA-FEMALE Antenna connector (Cellular) |
| Installation | Hanging-Ear or Din-Rail installation |
| Enclosure | Metal casing |
| LED Indicators | PWR/WAN/LAN/2.4GHz/5.8GHz/Data/Cellular/Signal |
| Annual Failure Rate | AFR < 1.5% (Continuous Operation Status) |
| Power Input | 12V to 18V/1.5A |
| Operating Temperature | -22 °F to +131 °F (-30 °C to +55 °C) |
| Storage Temperature | -40 °F to +185 °F (-40 °C to +85 °C) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Air Pressure | 86kPa to 106kPa altitude |
| Safety Certification | CCC, can do according to the customer’s request |
| Dimension | 7.2 in × 5.03 in × 1.77 in (18.3 cm × 12.8 cm × 4.5 cm) (excl. antenna) |
| Weight | 24.6 oz (698 g) |
