Features
- Precise Fault Detection
- Durable Power Supply
- Accurate Path Tracing

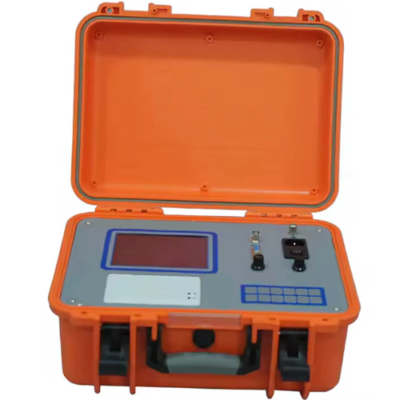

- Compact And Lightweight
Technical Specifications
| Sampling Frequency | 100 MHz, minimum resolution 1.64 ft (0.5 m) |
| Test Methods | Flashover method, low-pressure pulse method, multiple waveform analysis method |
| Pulse Amplitude | 100 Vpp |
| Pulse Width | 0.1 μS and 2 μS |
| Measuring Distance | Max: 18.64 mi (30 km), Min: 49.2 ft (15 m) |
| Measurement Error | Rough absolute: ±32.8 ft (10 m), Relative error: ±1% |
| Power Supply | Built-in 12 V / 10 Ah DC for 4 hours or external AC 220 V 50 Hz |
| Positioning Accuracy | 0.66 ft (0.2 m) |
| Magnification | 500,000 times |
| Working Voltage | ±9V ±20% |
| Quiescent Current | <10 mA |
| Receive Signal | Acoustic waves, electromagnetic waves, vibration, and magnetic field signals |
| Output Impedance | 350 Ω |
| Impact High Voltage | 0 V to 35 kV |
| High Voltage Partial Pressure | Voltage accuracy of 1.5 |
| Built-in Capacitor | 4 μF |
| Discharge Power | 2450 J |
| Impact Time | Automatic impact: 5 seconds, Manual control available |
| Impact Power | 2KVA |
| Working Power Supply | AC 220V ±10%, 50Hz ±2Hz |
| Operating Temperature | -4 °F to 122 °F (-20 °C to +50 °C) |
| Ambient Temperature | 14 °F to 104 °F (-10 °C to +40 °C) |
| Dimensions | 22.83 in x 14.57 in x 42.52 in (58 cm x 37 cm x 108 cm) |
| Weight | ≤275.6 lb (125 kg) |
