Features
- TDR Pulse Reflection Technology
- Intelligent Bridge Fault Testing
- Zero Dead Zone Capability
- High Testing Accuracy Guaranteed
- Long Operating Battery Life
Technical Specifications
| Max Range | 26.2 ft (8 km) (Optional: 52.5 ft (16 km), 105 ft (32 km)) |
| Dead Zone | 0 ft |
| Testing Accuracy | 3.28 ft (1 m) |
| Pulse Width | 40 μs to 10 μs with automatic adjustment |
| Impedance Balance Adjustment | Automatic |
| Gain Adjustment | Automatic and manual |

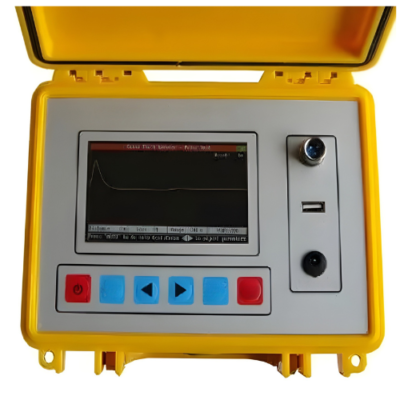

| Device | PCLD-620 Cable Fault Locator |
| Max Poor Insulation Resistance | 100 MΩ |
| Testing Accuracy | ±1% x cable length |
| Max Testing Cable Length | 32,805 ft (9,999 m) |
| Charging Time | 4 hours |
| Operating Time | 8 hours |
| Dimensions | 8.66 in x 6.30 in x 3.54 in (22 cm x 16 cm x 9 cm) |
| Weight | 2.20 lbs (1 kg) |
