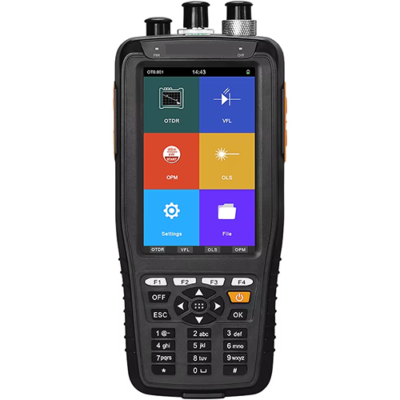

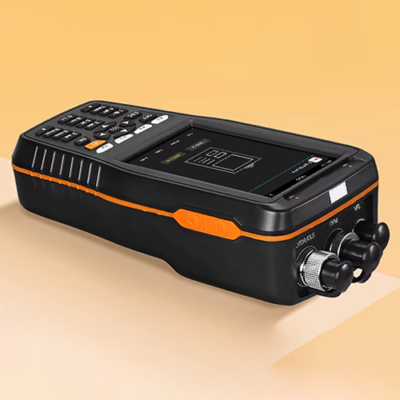

Features
- Capacitive touch screen
- Integrated VFL, OPM, and OLS
- Compact and lightweight design
- Intuitive user interface
Technical Specifications
| Battery Life | 8 hours continuous use |
| Battery Type | Rechargeable lithium-ion |
| Charging Time | 3 hours |
| Data Transmission | USB 2.0 |
| Language Support | Multilingual interface |
| Measurement Distance | Up to 37 miles (60 km) |
| Fiber Type | Single-mode 9/125 µm |
| Reflection Event Dead Zone | 6.6 ft (2 m) |
| Attenuation Event Dead Zone | 39 ft (12 m) |
| Number of Test Records Saved | 200 |
| Measurement Accuracy (OPM) | 5000 tests |
| Pulse Width Range | 5 ns to 10 µs |
| Dynamic Range | 20 dB to 42 dB |
| Humidity | 0% to 85% (Non-condensing) |
| Operating Temperature | 23°F to 122°F (-5°C to 50°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Dimensions | 7.5 in x 8.7 in x 3.5 in (19 cm x 22 cm x 9 cm) |
| Weight | 2.2 lbs. (1 kg) |
