| Material | High-quality all aluminum, surface anodic oxidation |
| LAN | 2 x i211-AT 1000M Lan |
| Material of Case | High quality all aluminum alloy mini itx case |
| Operating System | For Win -7 or 8 or 10 , linux OS |
| USB | 8 x USB3.0 |
| Power Supply | DC 9 to 36V wide voltage |
| Color | Titanium gray (Color can be customized) |
| CPU | Core i5 6500T (dual core, 4 threads, 2.5 GHz, MaxTurbo 3.1 GHz) |
| RAM | Support 2 x DDR4 1866 or 2133MHz SODIMM Ram Slot, Max 32G |
| Storage | Support 1 x MSATA, 2 x (6.38cm) 2.5-inchHDD ( support RAID0 or 1) |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated HD Graphics 530 |
| Display Port | 1 x VGA, 1 x HD, 1 x DP, (Support synchronous and asynchronous dual display) |

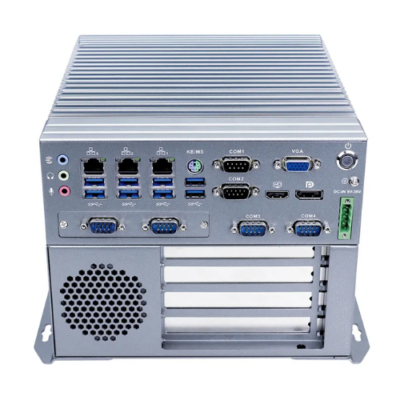

| I or O | 8 x USB3.0, 2 x In-tel 1000M LAN, 1 x VGA, 1 x HD, 1 x DP, 1 x Mic, 1 x Audio, 6 x COM (COM1, COM2 support RS232 or 422 or 485 Optional), 1 x DC, 1 x 3PIN Power supply Phoenix terminal |
| Expansion Slot | Support 1 x MINI PCIE slot (Support WIFI or 3G or 4G), embedded SIM slot, Support 1 x MINI PCIE Slot (Support MSATA or 3G or 4G), embedded SIM slot, Optional Port: 16Pin GPIO, 4 x USB2.0 (standard version without this port), |
| Network | 2 x In-tel i211-AT 1000M Lan, 1 x In-tel i219-LM 1000M Lan (support Vpro) |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0 to 255 level) |
| Power Supply | Support DC 9 to 36V wide voltage, Support positive and negative connection reverse protection |
| Work Humidity | 0% to 95% RH non-condensing |
| Work Temp | 32°F to 122°F (0°C to 50°C) (Commercial HDD), -4°F to 140°F (-20°C to 60°C) (Industrial SSD), Surface air flow |
| Dimension | 8.27 in x 9.45 in x 3.29 in (210 x 240 x 83.5 mm) |
| Net Weight | 8.82 lb (4kg) |
