Technical Specifications

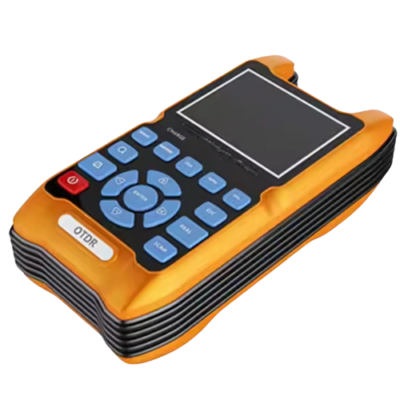

| Item Type | Optical time domain reflectometer |
| Material | ABS |
| Dynamic Range | 32 dB/30 dB (100 kilometers) |
| Wavelength | 429 ft ± 6.56 ft(131 ± 2 cm) / 508 ft 6.56 ft (155 cm ± 2 cm) |
| Event Dead Zone | Attenuation dead zone |
| Pulse Width | 10 ns, 25 ns, 50 ns, 100 ns, 250 ns, 500 ns, 1 us, 2.5 us, 5 us |
| Distance Uncertainty | ± 3.28 ft (1.0 m) ± 0.005% × test distance ± resolution) |
| Linearity | ±0.05 dB/dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | Approx. 3.3 ft (1 meter) |
| Interface | 1 FC |
| VFL | 1 mW |
| Data Storage | > 20,000 traces (Standard 4 GB memory card) |
| Display | 3.5-inch TFT color LCD monitor |
| Minimum Ranging Accuracy | Approx. 0.3 ft (0.1 meter) |
| USB Interfaces | 2 USB ports |
| Battery | Built-in rechargeable lithium battery, 3000 mAh |
| Charging Time | 2.5 hours |
| Working Time | Standby: >15 hours, Measurement: >8 hours |
| Dimensions (Device) | Approx. 3.9 x 2.6 x 7.9 in (10 cm x 6.5 cm x 20 cm) |
