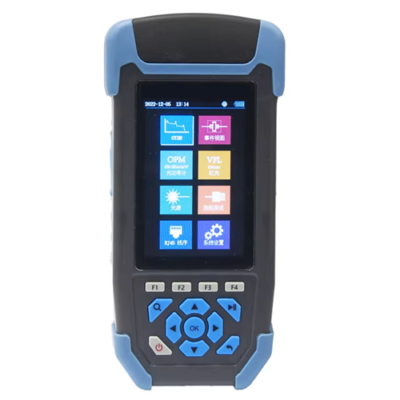

Handheld Fiber Testing Device Compact Design and Accurate Detection – The Inventory Master

Name: Handheld Fiber Testing Device Compact Design and Accurate Detection – The Inventory Master - The Inventory Master
SKU: TIMTDRT-185

Portable device for measuring losses, detecting faults, and breakpoints in fiber networks. Compact, precise, multifunctional, and easy to use.

SKU: TIMTDRT-185 Category: Industrial Ethernet

Features

Connector	FC/UPC
File Format	SOR Standard File Format
Data Storage	Internal: ≥600 External: TF Card
Display	3.5-inch Color LCD
Data Interface	Micro USB
External Storage	TF Card
Power Supply	Polymer Li-battery: 3.7V, 4000mAh; Power Adapter: 5V DC, 2A
Battery Life	Standby: >20 hours; Measuring time: >12 hours
Wavelength	1310/1550 nm
Dynamic Range	24 dB / 22 dB
Event Blind Zone	9.84 ft (3 m)
Attenuation Blind Zone	26.25 ft (8 m)
Test Range	32.8 ft to 37.3 miles (10 m to 60 km)
Pulse Width	5 ns to 10 µs
Reflection Accuracy	±3 dB
Relative Humidity	0% to 95% non-condensing
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Weight	≤0.77 lbs (≤350g)
Dimensions	6.81 in x 3.23 in x 1.46 in (17.3 cm x 8.2 cm x 3.7 cm)
