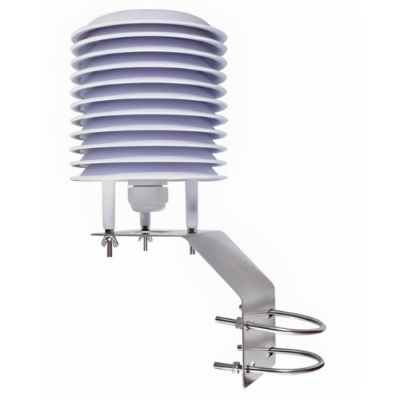

Overview
The Inventory Master high-sensitivity gas sensor detector for air quality is a high-performance, versatile electrochemical series module that uses a three-electrode electrochemical gas sensor and a high-performance microprocessor with different gas sensors to measure the corresponding gas. It can accurately measure the gas concentration in the environment, with digital output and analog voltage output, which is convenient for users to use and debug, which greatly shortens the user’s design and development cycle. It combines electrochemical sensors and circuits to meet customers’ needs for different gas detection applications.
Features
- High Sensitivity
- Fast response
- High precision, wide measuring range
- Effective resistance to water vapor
- Excellent stability
- Easy installation
Technical Specifications
| Material | Plastic |
| Shell Material | ABS |
| Sensitivity | High |
| Accuracy | ±(4 ppm + 2% FS) |
| Output | RS485 |
| Testing | Outdoor |
| Warmup Time | 3 min |
| Specification | 0 ug/m3 to 1000 ug/m3 |
| IP Rating | IP65 |
| Certification | CE |
| Range | 0 ppm to 20 ppm |
| Display | Optional |
| Response Time | <90 s, ≤15 s |
| Principle | Electrochemistry |
| Power Supply | 12 V to 24 V |
| Power Consumption | ≤0.2 W |
| Resolution | 0.001 ppm |
| Accuracy | ±3% @25 °C |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Relative Humidity | 0% to 95% RH (No condensation) |
| Weight | 4.93 oz (140 g) |
