Overview

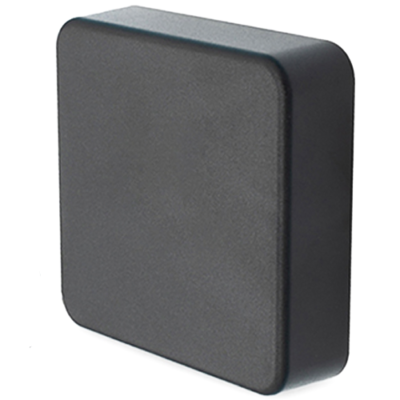

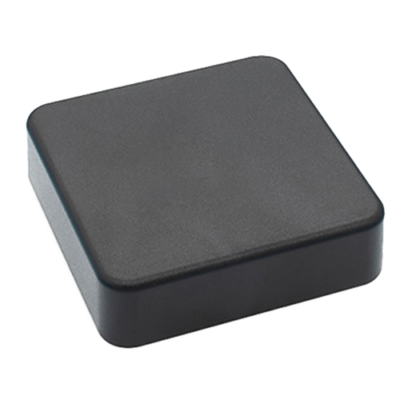

The Inventory Master IoT Vehicle Tracking Bluetooth 0.249 mi (400 m) BLE Gateway Beacon is a high-performance beacon with extended battery life. Supporting iBeacon, Eddystone (URL, UID, TLM), and AltBeacon, it broadcasts up to 10 advertising slots. Compatible with iOS and Android SDKs, it enables applications like proximity marketing, indoor location, and asset tracking with ease.
Features
- Bluetooth module for vehicle tracking
- Free SDK for customization
- BLE 5.0 low energy communication
- Compact and portable design
- Supports real-time data transmission
Applications
- Vehicle tracking systems
- Fleet management solutions
- IoT-enabled logistics
- Asset monitoring in transportation
Technical Specifications
| Bluetooth Version | BLE 5.1 (Low Energy) |
| TX Power | -19.5 dBm to +2.5 dBm |
| Antenna | F-shape PCB antenna |
| Power Supply | 2 x AAA (LR03), battery included in the package |
| Power On or Off | Long press central area for power on or off |
| Color | White or customized |
| Advertising Format | iBeacon, Eddystone (URL or UID or TLM), AltBeacon |
| Advertising Interval | Default 1300 ms, range from 100 ms to 10000 ms |
| Security | Access password required, default PIN code 000000 |
| Max Number of Broadcast | 10 slots configurable advertising frames |
| Default Broadcast Interval | 1300 ms for iBeacon and Eddystone |
| System Compatibility | iOS 7.0+ or Android 4.3+ |
| Advertising Distance | Up to 0.249 mi (400 m) at Tx Power = 2.5 dBm in open area |
| Firmware Upgrading | OTA (Upgrade firmware over the air) |
| Button | Power on or off |
| LED | Status indicator |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Size | 2.19 in x 2.19 in x 0.63 in (55.7 mm x 55.7 mm x 16 mm) |
| Net Weight | 0.99 oz (28 g) without battery |
