Overview

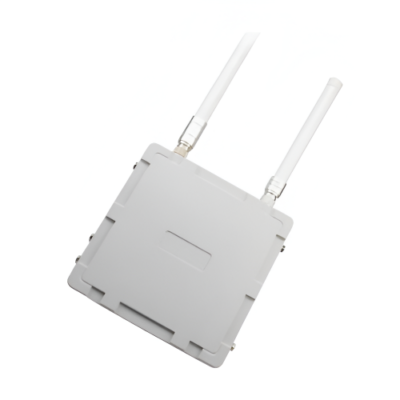

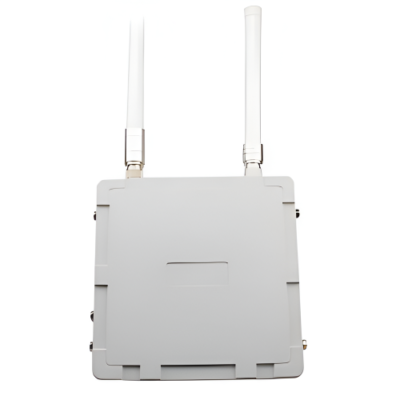

The Inventory Master IP67 protection level WIFI is an outdoor gateway based on the Low Power Wide Area Network LoRaWAN™ protocol, which can connect to standard LoRaWAN terminals and conduct bidirectional communication. The gateway connects the gateway device to the NS (Network Server) via standard Ethernet, supporting network and firewall functions. At the same time, it supports 4G/LTE, GPS, WIFI and other communication protocols to realize data upload. Support the expansion of other protocols, such as Zigbee/BT by reserving standard card slots. Supports the MQTT Bridge function, which can be integrated to third-party platforms through MQTT Integration.
Features
- The gateway device can be flexibly configured according to needs; LoRa supports up to 8RX 2TX channel.
- Support PoE IEEE 802.3 af Class 4, 48V.
- Supports uplink multi-link backup via Ethernet, WIFI or LTE.
- Open WRT software program supporting LoRaWAN™ protocol and web network configuration.
- LoRa concentrator built-in radiator to dissipate heat.
- Access to private or public (TTN) LoRa web servers.
- Backup battery last 5 hours in normal scenarios.
- Support IP67 protection level.
Technical Specifications
| Processor | Mt 7628, DDR2 RAM 128 MB |
| Wi-Fi Function | Frequency: 2.400 to 2.4835 GHz (802.11 b/g/n) |
| RX Sensitivity: -95 dBm (min), TX power: 20 dBm (max) | |
| Operating channel: 2.4 GHz: 1 to 13 | |
| LoRa Function | S x 1301 Mini PCIe Card 8 lanes (up to two can be connected, 8 lanes optional) |
| RX Sensitivity: -142 dBm (min), TX power: 27 dBm (max) | |
| Frequency: EU 433, CN 470, EU 868, US 915, A S923, AU 915, KR 920, IN 865 | |
| Mobile Cellular Network | Default quested EG95: LTE CAT 4 |
| European standard | |
| LTE FDD: B1/B3/B7/B8/B20/B28 A | |
| WCDMA: B1/B8 | |
| GSM: 900/1800 MHz | |
| North American standard | |
| LTE FDD: B2/B4/B5/B12/B13 | |
| WCDMA: B2/B4/B5 | |
| Power Supply | PoE (IEEE 802.3af/at-Compliant), 42 to 57 VDC |
| Power Consumption | 12 W (type) |
| ETH | RJ 45 (10/100M) |
| Antenna | 5 N-Type connector |
| Protection Class | IP67 |
| Installation Method | Pole or wall mount |
| Weight | Approx. 6.94 lb (3.15kg) |
| Size | 8.66 in x 8.66 in x 4.1 in (22 cm x 22 cm x 10.4 cm) |
| Operating Temperature | -22°F to 149°F (-30 ºC to 65 ºC) |
