Overview

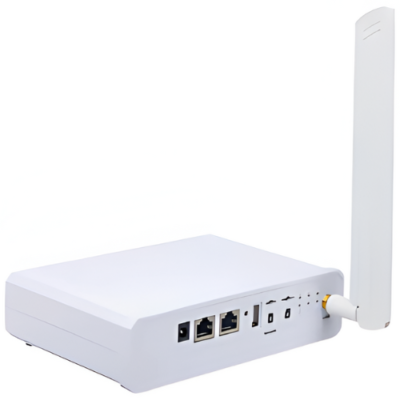

The Inventory Master LoRa gateway with ethernet & advanced protocol support, 8 channel bridge provides reliable connectivity for IoT applications. This product features 8-channel support and built-in Ethernet connectivity for straightforward installation. It supports MQTT Bridge mode for seamless integration with third-party platforms, making it ideal for small and medium-sized deployments.
Features
- Full LoRaWAN stack support (V 1.0.3) with semtech SX1302
- Supports 2.4 GHz Wi-Fi AP for configuration
- 100 M Base-T Ethernet with PoE
- Multi backhaul with Ethernet, Wi-Fi, cellular
- OpenWRT software supports with Web UI for easy configuration and monitoring
- Can integrate with both private (ChirpStack) and public (TTN) network servers
- TF card for log backup and LoRa frame buffering (in case of backhaul failover)
- Built-in Network Server for easy deployment of applications and integration of gateways
- LTE Cat 4 network (optional)
Technical Specifications
| Computing | MT7628, DDR2 RAM 128 MB |
| Wi-Fi Feature | Frequency: 2.4 GHz (802.11 b or g or n), RX sensitivity: – 95 dBm (Min), TX power: 20 dBm (max), Operation channels: 2.4 GHz: 1 to 13, SX1302 Mini PCIe card, 8 channels |
| LoRa Feature | RX Sensitivity: – 139 dBm (min), TX Power: 27 dBm (max), Frequency: EU433 or CN470 or EU868 or US915 or AS923 or AU915 or IN865 or KR920 |
| Cellular | Supports Quectel EG95-E or EG95-NA (IoT or M2M-optimized LTE Cat 4 Module), EG95-E for EMEA Region: – LTE FDD: B1 or B3 or B7 or B8 or B20 or B28AWCDMA: B1 or B8, GSM/EDGE: B3 or B8, EG95-NA for North America Region: – LTE FDD: B2 or B4 or B5 or B12 or B13 – WCDMA: B2 or B4 or B5 |
| Power Supply | DC 12 V – 1 A, PoE (IEEE 802.3 af), 36~57 VDC |
| Power Consumption | 12 W (typical) |
| ETH | RJ45 (10 or 100 M) |
| Console | Type-C USB |
| Antenna | LoRa: RP-SMA female connector, LTE: internal antenna, Wi-Fi: internal antenna |
| LEDs | POWER LED, breathing LED (top side), ETH LED (On ETH connector), LoRa LED, WLAN LED, LTE LED |
| Ingress Protection | IP30 |
| Enclosure Material | Plastic |
| Operating Temperature | 14 to 131 °F (- 10 to 55 °C) |
| Weight | 10.58 oz (300 g) |
| Dimension | 6.53 x 5.00 x 1.42 in (16.6 x 12.7 x 3.6 cm) |
