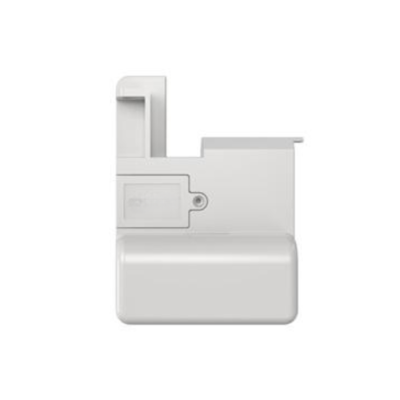

LoRaWAN IoT Gateway with RS485 & M-Bus Interface – The Inventory Master

Smart LoRaWAN IoT gateway with RS485 and M-Bus interface, supports TCP or MQTT, IP67 protection, and FOTA for water and gas meters.

SKU: TIMLG-111 Category:

Technical specifications

TechnologyLoRaWAN-based smart IoT communication
Connection TypeRS485 and M-Bus interface
Frequency BandEU868
Transmit PowerUp to 23 dBm
Sensitivity-148 dBm
Communication ProtocolsTCP or MQTT
Alarm TypesLow battery, tamper, and magnetic interference
FOTA SupportSupports firmware over-the-air updates via LoRaWAN
Ingress ProtectionIP67 (dustproof and waterproof)
Dimensions2.7 in x 3.5 in x 1.5 in (68 mm x 90 mm x 38 mm)
