Overview

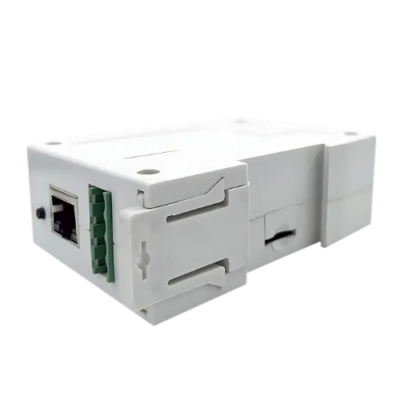

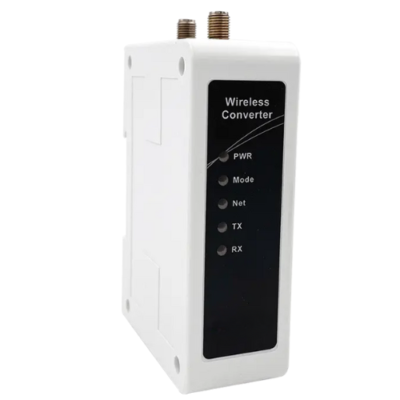

The Inventory Master’s LoRaWAN RS-485 to Wireless data converter is a DTU (Data Transfer Unit) device that converts the RS-485 bus to wireless data. Sub models achieve RS-485 data to LTE (Cat.1 or Cat. 4), private LoRa, standard LoRaWAN, Ethernet, etc. communications method. This is a highly reliable DTU device that can be used in industrial scenarios, directly installed on rack rails, and provide a method that makes previous devices realize IoT evolution. All these series come with an easy configuration function, which can directly manage and configure options and parameters in the LAN.
Features
- Rack rails compatible
- Built in configuration page
- Support for data encryption
- Support communication key function
- Support LBT function
Technical Specifications
| MCU | ESP32C3-FN4 or ESP32DOWDQ6 |
| LoRa Chipset | SX1262 |
| LTE Module | Air724UG |
| Protocol | LoRa or LoRaWAN |
| Rack Rail Width | 1.4 in (35 mm) |
| Max. TX Power | 21 dBm ± 1 dBm |
| Max. Receiving Sensitivity | – 139 dBm |
| Supply Voltage | 4.5 V to 28 V |
| Antenna Impedance | 50 Ω |
| Address Code | 0000 to FFFF |
| Baud Rate | 1200 to 115200 |
| Data Rate | 900 bps to 62500 bps |
| Buffer | 1024 bytes |
| Operating Humidity | 10 % RH to 90 % RH, Non-Condensing |
| Operating Temperature | – 40 °F to 185 °F (- 40°C to 85°C) |
| Size | 3.44 in x 2.17 in x 0.3 in (87.4 mm x 55.2 mm x 8.7 mm) |
