Overview

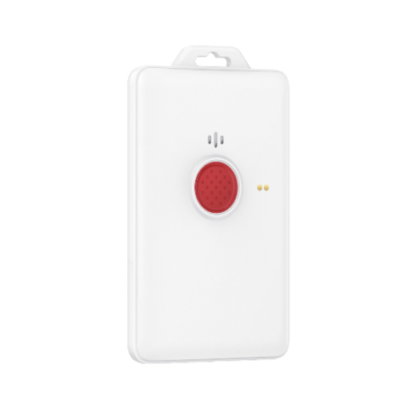

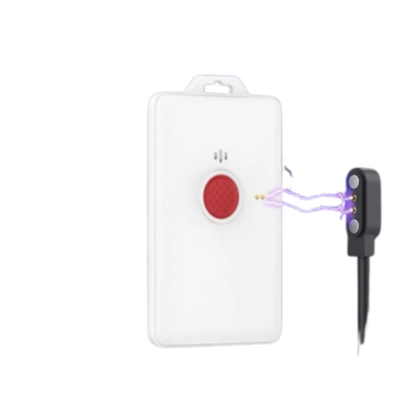

The Inventory Master’s LoRaWAN Smart Badge with BLE, WiFi, GPS and IP67 Protection is a smart badge that combines LoRaWAN network transmission with BLE, WiFi, and GPS positioning technologies. This device provides reliable indoor and outdoor positioning, making it ideal for staff safety, emergency alarm notifications, and effective personnel management.
Technical Specifications
| Application | IoT Application |
| Power Supply | 1500 mAh Rechargeable battery |
| IP Rating | IP67 |
| Alarm Status Indication | Vibration, buzzer, LED indicator |
| Bluetooth | BLE V5.0 |
| LoRa Protocol | LoRaWAN V1.0.3 |
| LoRa Frequency | EU868, AU915, US915, AS923, IN865, KR920, EU433, CN470, CN779, RU86, AS923-1, AS923-2, AS923-3, AS923-4 |
| GPS | Traditional GPS and Semtech LoRa Cloud |
| Tx Power | Max 21 dBm |
| Sensitivity | -137 dBm @ SF12 300bps |
| Operating Temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating Humidity | 5% to 95% (No condensation) |
| Weight | 2.47 oz (70 g) |
| Dimensions (L x W x H) | 3.80 in x 2.43 in x 0.39 in / 4.07 in x 2.69 in x 0.46 in (96.561.610 mm / 103.368.411.8 mm includes lugs) |
