Overview

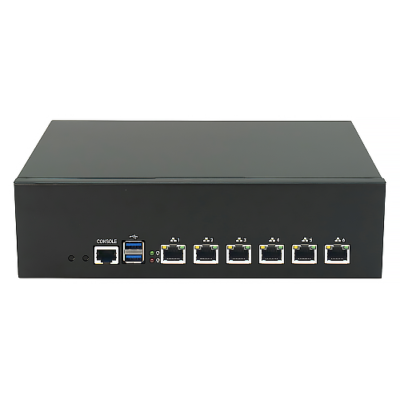

This Mini Firewall Router with 6 LAN Ports Secure your network with the 6 Lan desktop Mini firewall router, featuring Intel Core i7, Linux OS, and AES-NI encryption. Ideal for on-premises Edge deployments.
Technical Specifications
| CPU | Intel®Core 2nd or 3rd generation M Series CPU |
| Chipset | Intel SOC |
| Memory | DDR3, 1 x SODIMM, up to 8 GB |
| Storage | 1 x MSATA, 32 GB up to 1 TB SSD (Support 2.5” SATA) |
| Expansion Interface | 1 x MPCIE support Wi-Fi + BT or 4G LTE (SIM card interface) |
| BIOS | AMI UEFI BIOS |
| System | Linux Ubuntu, CentOS, Debian, PFsense, OPNsense,MikroTik ROS |
| Ethernet | 6 x Intel 82574L or i225 or 226V, 1 or 2.5Gbps PCIe ethernet Controller, RJ45 |
| Serial | 1 x RS232 |
| USB | 2 x USB 3.0 |
| GPIO | 8 x Programmable GPIO |
| Function | Power on operation, Network wake up, PXE, Watchdog |
| Power Input | DC 12 V Input size 0.21 in x 0.09 in (5.5 mm x 2.5 mm） |
| Display | 1 x Standard VGA interface |
| Environmental Humidity | Operating 90% to 10% Storage 95% to 5%, non-condensing |
