Overview

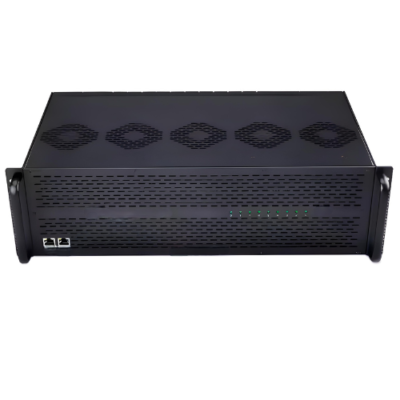

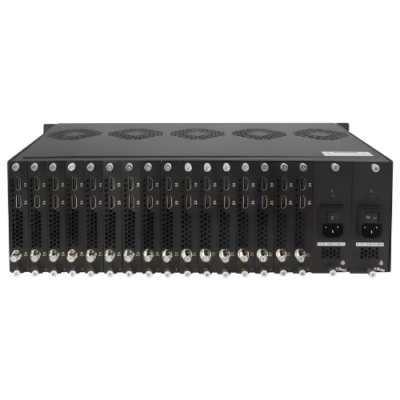

The Inventory Master multi IP video converter with channel configuration s a 4RU rack mounted chassis that allows for installation of up to 16 pieces high quality SAW filtered frequency agile modulators covering 860MHz. Built in active combiner eliminates unnecessary cabling and potential connection problem and ensures a high output level. Low out of band noise makes it ideal in adjacent channel headend.
Features
- Full frequency agility allows the rapid creation of channel lineups
- Each channel is completely independent. Channel configuration is flexible
- Two cooling fans for heat sinking prolong service life
- Non volatile memory ensures channel programming remains after power loss
- Two digit LED display provides quick channel identification
- Available in NTSC or PAL configurations
Technical Specifications
| Output Frequency | 47 MHz to 860 MHz |
| Output Connector | F Connector |
| A/V Ratio | -11 dB to -18 dB |
| Frequency Stability | ± 10 KHz |
| Modulator Capacity | 16 |
| Video C/N | 50 dB |
| Audio Input Connector | White RCA |
| Modulation Range | 90% |
| Power | 110 V or 220 V |
| Size | 16.53 in × 6.69 in × 7.87 in (42.0 cm × 17.0 cm × 20.0 cm) |
| Weight | 31.46 oz (900 g) |
