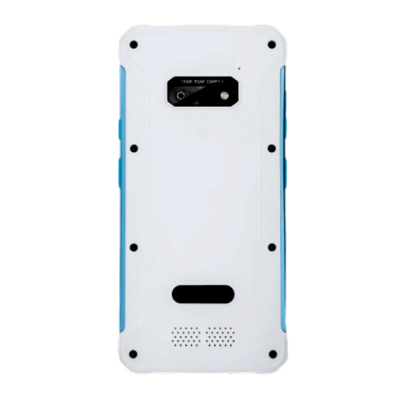

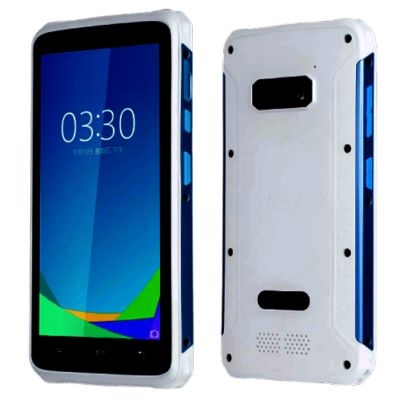

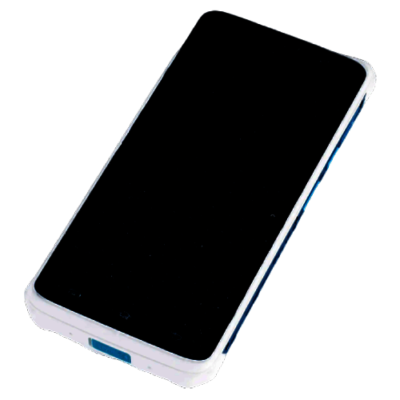

Overview
The Inventory Master Octa-Core Scanner besides the IP65 rating, these devices may comply with military-grade standards for durability (MIL-STD-810G), making them resistant to shocks, drops, vibration, extreme temperatures, and humidity, These devices may offer options for customization and expansion, such as additional ports, slots for SD cards, or compatibility with accessories like grips, straps, or specialized mounts. Besides the IP65 rating, these devices may comply with military-grade standards for durability (MIL-STD-810G), making them resistant to shocks, drops, vibration, extreme temperatures, and humidity.
Technical Specifications
| Processor | MT6762V/CA(Octa-core，2.0GHz) |
| Operating System | Android 9.0 （Android 13 optional) |
| Memory | 64 GB ROM+4 GB RAM(Standard) |
| Expansion Slot | Micro SD card (Up to 64GB SDHC） |
| Display | 5.5 in，720 x 1440, HD+ 18:9，LTPS |
| Touch Panel | GFF 10 touch, Glove mode/Wet hand operation |
| Front Camera | 5MP（ FF） |
| Rear Camera | 13MP, PDAF, with flash LED |
| Touch Glas | Tempered glass |
| Keypad | Three virtual keys: Menu, Home, Back Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-) |
| Battery Capacity | 5000m (about 3.11 mi) Ah build-in lithium polymer battery discharge temperature-20~60℃ |
| Fast Charge | 9V/2A |
| Speaker | 12 x 17 x 2.5（Dual speaker） |
| Prompt | Vibration prompt /LED prompt/audio prompt |
| Vibration | Built-in vibration motor |
| Sensor | G-sensor/Proximity sensor/Light sensor/Gyroscope/geomagnetic sensor |
| Wireless WAN (Network frequency） | GSM：B2/B3/B5/B8 CDMA/CDMA-EVDO：BC0 TD-SCDMA：B34/B39 WCDMA：B1/B8 TDD-LTE Bands：B34/B38/B39/B40/B41 LTE-FDD Bands：B1/B3/B8 CA: B3+B3 2CA；B1+B3 2CA Optional for another special Band |
| Wireless WAN (Data Service） | GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/a (Dual bands： 2.4GHz+5GHz) |
| Bluetooth | Bluetooth 5.0 |
| GPS | Support GPS/AGPS/Glonass/BDS |
| Scan Engine | Professional scanner SE6100-2D （developed together with Zebra Honeywell scan Engine N6703) |
| Optical Resolution | 1280 x 800 pixels / 844 x 640 pixels |
| Scan Precision | ≥3mil, Code 39/128 |
| Scan Angles | Tilt:360°，Pitch: ±45°，Skew: ±60° |
| Laser Safety Grade | Class II |
| Frequency | 13.56 MHz |
| Reading Distance | Within 2cm (about 0.79 in) |
| Protocol | ISO14443A/ISO14443B |
| Special Feature | Support contactless CPU card, support 2 generation ID card read |
| Operating Temp. | -20 °C to 55 °C ( -4 °F to 131 °F) |
| Storage Temp. | -40 °C to 60 °C ( -40 °F to 60 °F) |
| Humidity | 0 to 95% |
| Drop Specification | Concrete 1.5M |
| IP Grade | IP65 |
| ESD | ±12 KV air discharge； ±8 KV conductive discharge |
| USB Port | 1 PCS Type-C USB waterproof port |
| Charger Port | 1 PCS, Type-C USB waterproof port |
| OTG | Support |
| Developing Tool | Android SDK |
| Supported Language | Java |

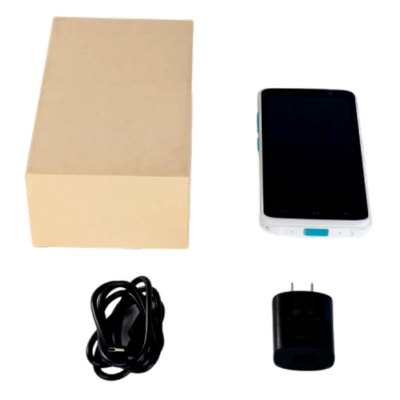

| Standard | Power adapter Usable tempered glass screen protector |
| Dimension (LxWxD) | 0.54 in x 2.99 in x 6.22 in (158 mm ×76 mm ×13.7 mm ) |
| Weight | 227g (0.50 lb) |
