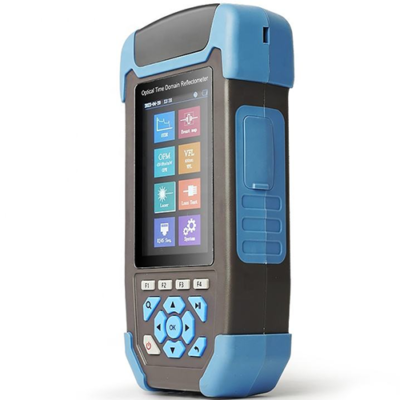

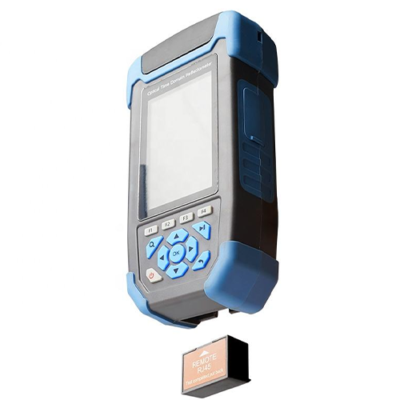

OTDR Machine Tester with Class II Laser Safety – The Inventory Master

Name: OTDR Machine Tester with Class II Laser Safety – The Inventory Master - The Inventory Master
SKU: TIMSCT-166

Advanced FTTX testing with TCP, GPRS, Wi-Fi, Class II laser safety, wide test range, and high-resolution sampling for precise results.

SKU: TIMSCT-166 Category: Industrial Ethernet

Features

Use	FTTX
Network	TCP, GPRS, wifi
File Format	SOR Standard File Format
Connector	FC/UP (Interchangeable SC、ST）
Fiber Type	G.652 SM Fiber
Data Storage	Internal: >= 600, External: TF Card
Laser Safety Level	Class Ⅱ level
Dynamic Range	24 dB / 22 dB
Event Blind Zone	9.84 feet (3 m)
Att Blind Zone	26.25 feet (8m)
Test Range	32.81 feet (10 m) to 37.28 miles (60 km)
Pulse Width	3 ns to 10 us
Ranging Accuracy	3.28 feet (1 m) + Sampling Interval + 0.005 ％ × Test Distance
Loss Accuracy	± 0.2 dB / dB
Sampling Points	16 k to 128 k
Sampling Resolution	0.164 feet (0.05 m) to 26.25 feet (8m)
Reflection Accuracy	± 3 dB
Pulse Width	3 ns to 10 us
