Features
- Dustproof design
- Advanced IOLM
- Precise measurements
- Automated testing
Technical Specifications
| Use | FTTH |
| Application | Optical fiber |
| Certification | CE |

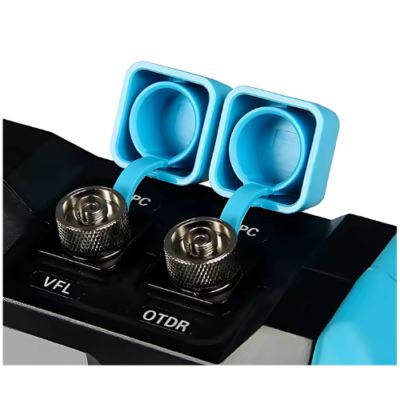

| Connector | FC, SC, ST |
| Wavelengths | 1310/1550 nm |
| Power Supply | Battery (rechargeable) |
| Display | 5.6 in LCD touch screen |
| Dynamic Range (dB)² | 21/19, 32/30, 38/36, 32/30/30 or 34/36 |
| Pulse Width (ns) | 5, 20, 40, 80, 160, 320, 640, 1280 or 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240/20480 |
| Event Dead Zone (m)³ | 32.8 ft (10 m) |
| Attenuation Dead Zone (m)³ | 65.6 ft (20 m) |
| Linearity (dB/dB) | ±0.05 |
| Loss Threshold (dB) | 0.05 |
| Loss Resolution Ratio (dB) | 0.01 |
| Sampling Resolution Ratio (m) | 0.4 ft to 26 ft (0.125 m to 8 m) |
| Sampling Point | 32K |
| Distance Uncertainty (m) | ± (3.28 ft + 5 x 10^-5 x distance + sampling interval) |
| Distance Scope (km) | 0.18 mi to 111 mi (0.3 km to 180 km) |
| Typical Real-Time Refreshing Duration (s) | 0.2 |
| Duration of Measurement | Defined by user, 5s, 10s, 15s, 30s, 1min, 2min, 3min are selectable |
| Working Time | 8 hours |
