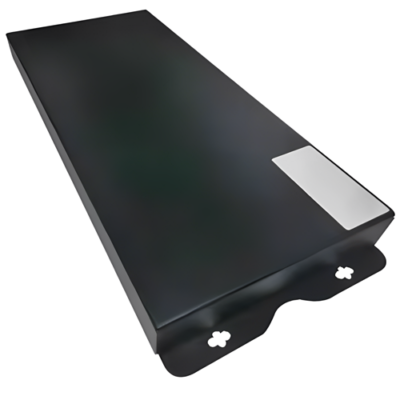

Port UHF RFID Reader 860MHz to 960MHz 114.8 in Range – The Inventory Master

Name: Port UHF RFID Reader 860MHz to 960MHz 114.8 in Range – The Inventory Master - The Inventory Master
SKU: TIMURR-108

Discover the UHF RFID Module with 33 dBm adjustable power, fast read rate, and robust interfaces for versatile RFID applications.

SKU: TIMURR-108 Category: Bluetooth Low Energy (BLE)

Technical Specifications

Protocol	EPC global UHF Class 1 Gen 2 or ISO 18000-6C
RSSI	Support
Frequency	860 MHz to 960 MHz
RF Power	33 dBm ±1 dB (Max)
Step Power	1 dBm
Signal Width	<250 kHz

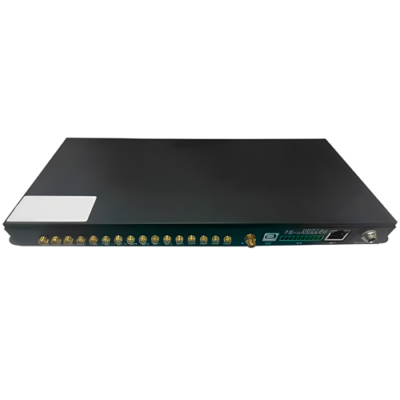

Antenna Port	16 SMA
Effective Distance	12 dBi linear polarized antenna, 30 dBm, standard E41 testing tag 114.8 in (Read:35 m) 3.28 in (Write:1 m)
Read Speed	200tags per s
Interface	USB, RS232, RS485, Weigend, RJ45(TCP or IP, UDP) Wi-Fi, Blue tooth and 4G(DTU) 4 GPIO (+5 V TTL level), including 2 GPI and 2 GPO
Baud Rate	115200 bps
Operating Voltage	+12.0 V (9 to 24 V)
Operating Current	<600 mA or DC12 V
Standby Current	<100 mA or DC12 V
Operating Temperature	-4° F to 131° F (-20° C to 55 °C)
Storage Temperature	-22° F to 185° F (-30° C to +85 °C)
Operating Humidity	<95 % RH 77° F (+25° C) Non-condensing
