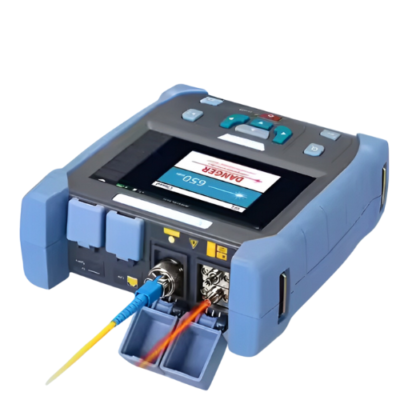

Features
- Portable design
- High-definition touchscreen
- Multifunctional testing
- Precise fiber analysis
Technical Specifications
| Dynamic Range | 24 dB / 22 dB |
| Testing Range | 0.5 mi to 62.1 mi (0.8 km to 100 km) |
| Wavelength | 1310 nm / 1550 nm / 850 nm / 1300 nm / 1610 nm |
| Pulse Width | 5 ns to 20 µs |
| Measurement Mode | Real-Time, Average, Automatic |
| Attenuation Dead Zone | 19.7 ft (6 m) |
| Event Dead Zone | 4.9 ft (1.5 m) |
| Sampling Points | ≥16,000 |
| Visual Fault Locator (VFL) | Universal Connector, 10 mW, 0.098 in (2.5 cm) |
| LCD Screen | 5-inch High-Definition Color Touchscreen |
| Battery Life | Long-Lasting, Rechargeable Lithium-Ion Battery |
| Interfaces | USB and SD Card Slots |
| Data Storage | Large Capacity Internal Memory and External Storage Supported |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Dimensions | 6.693 in × 6.063 in × 2.283 in (17 cm × 15.4 cm × 5.8 cm) |
| Weight | 42.33 oz (1.2 kg) |
