Overview

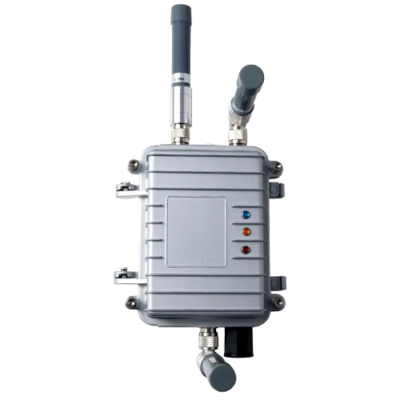

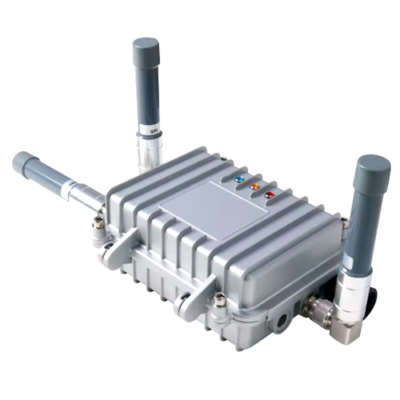

The Inventory Master quad-core IoT gateway for outdoor applications. This product acts as the base station of the LoRaWAN network allowing bidirectional communication between end-user nodes. It is a tough and programmable IoT Gateway designed for the IoT Gateway Developer and provides complete protection against dust and water. So it can be safely installed in outdoor or industrial indoor conditions. It also features Wi-Fi 2.4G or 5G, Bluetooth5.2 and GPS. Furthermore, the smart gateway allows the developers to build custom firmware from the bottom layer of the hardware with pre-integrated, comprehensive, and fully documented out-of-the-box guidance and support.
Features
- Multiple Backhaul Connectivity: Capturing data from end LoRa devices and sends it to the cloud via Wi-Fi 2.4G or 5G, and Ethernet
- Multi-Protocol LoRaWAN Gateway: Coming with Wi-Fi 2.4G/5G, BLE 5.2, LoRaWAN, and GPS
- Waterproof (IP66) and Robust Aluminum Enclosure: Features all-around IP66 Rating for protection from water and dust ingress, ideal for the harsh environments
- High Capacity: Supporting receiving data from 8 end-devices simultaneously and supporting up to 1000 end-devices
- Global LoRaWAN Frequency Plans: LoRa Frequency brand support: RU864, IN865, EU868, US915, AU915, KR920, AS923
Technical Specifications
| Chipset | PX30 Quad-core Cortex-A35 |
| Application | Outdoor, farming, mining industry |
| Power Supply | POE & 5V or 2A Adapter |
| OS | Linux |
| CPU | PX30 Quad-core Cortex-A35 |
| RAM | 2GB |
| ROM | eMMC 128GB |
| Network Interface | RJ45 |
| Waterproof | IP66 |
| Wireless Protocol | Zigbee LoRaWAN Wi-Fi Bluetooth 5.0 |
| LoRa Concentrator Engine | Semtech SX1302 |
| RAM | Up to 2GB |
| ROM | eMMC Up to 128GB |
| System | Linux |
| Power Supply Port | Support DC input, input Voltage range is 4.5V to 5V. Power seat aperture is 0.14 in (0.35 cm) (3.5 mm). The needle diameter is 0.053 in (0.135 cm) (1.35 mm) and is positive. Power adapter: 100 V to240V 50 HZ or 60HZ, Output is 5V or 2A |
| Reset Button | The reset button inside gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings. |
| Network Interface | The network interface supports CAT-5 or CAT-5E to transmit data and POE Power Supply (voltage range is 44 V to 57 V). It is a WAN or LAN variable. |
| Indicator LEDs | 1). Power LED normally on when powered on 2). Network LED normally on when connected 3). Card indicator |
| TF Card | Up to 128GB |
| Antenna | Wi-Fi Antenna, LTE Antenna, Optional BT, Zigbee, GPS |
| Current | 350 mA@5V |
| Waterproof Level | IP 66 |
| Operating Temperature | 14°F to 158°F (-10°C to 70°C) |
