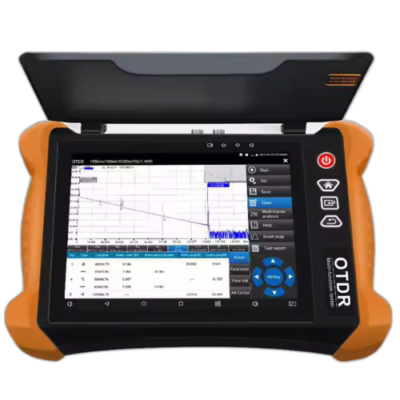

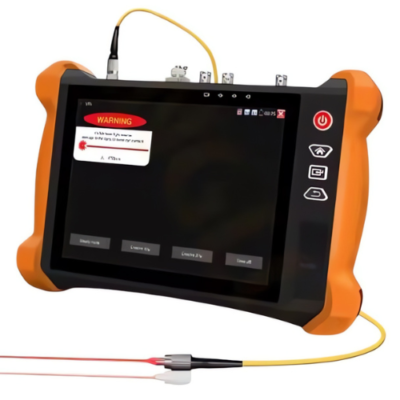

Features
- Retina Touch Display
- Advanced Fiber Analysis
- Camera Testing Integration
- Cable Fault Detection
Technical Specifications
| Wavelength (nm) | 1310 nm/1550 nm |
| Dynamic Range (DB) | 30/28 (32/30 optional) |
| Pulse Width (Ns) | 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480 |
| Testing Distance | ≤93.2 mi (150 km) |
| Event Blind Zone | ≤7.87 ft (2.4 m) |
| Attenuation Blind Zone | ≤45.93 ft (14 m) |
| Linearity (DB/DB) | ±0.05 dB/dB |
| Loss Threshold (dB) | 0.05 |
| Loss Resolution Ratio (dB) | 0.01 |
| Sampling Resolution Ratio | 0.41 ft to 26.25 ft (0.125 m to 8 m) |
| Sampling Points | 32K |
| Distance Uncertainty | ± (3.28 ft + 5 × 10⁻⁵ × distance + sampling interval) |
| Distance Scope | 0.62 mi, 3.1 mi, 6.2 mi, 18.6 mi, 37.3 mi, 62.1 mi, 111.8 mi (1, 5, 10, 30, 60, 100, 180 km) |
| Typical Real-Time Refreshing Duration | 1s |
| Measurement Duration | 5s, 10s, 15s, 30s, 1min, 2min, and 3min are selectable |
| Interface Type | FC-UPC |
| Network | ONVIF |
| Save Curves | Save and view testing curves |
| 4K Camera Testing | 4K H.265 IP camera test |
| Camera Types Supported | 8MP CVI, 8MP TVI, 8MP AHD |
| Wi-Fi | Wi-Fi hotspot creation |
| Fiber Length Test | Fiber length test |
| Cable Testing | RJ45 TDR Cable Test |
