Overview

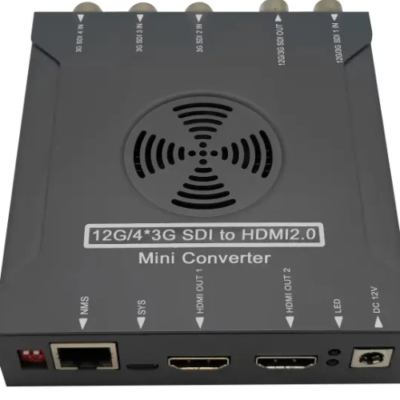

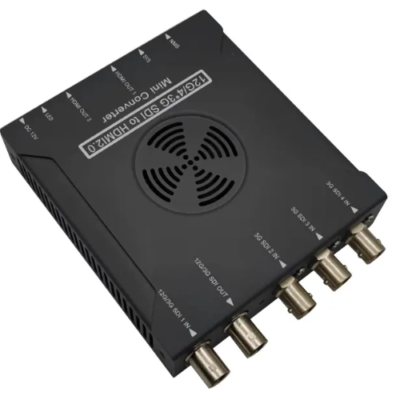

The Inventory Master SDI to 4K HDMI converter with support YUV and RGB converts 12G SDI or 4 x 3G SDI to HDMI 2.0, with pristine image fidelity and FR support up to 60p for 4K UltraHD.
MV SH1204A provides an easy to deploy monitoring connection from professional 4K 12G SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows.
It features a 12G SDI single link or 4*3G SDI input with a relocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
Features
- Convert 12G SDI to 2 HDMI 2 0a at up to 4K UltraHD 60 p,
- Support HDMI 1 downscale 4K to 1080 p
- Support YUV & RGB
- HDR signaling metadata pass through and optional override
- Embedded audio support 24 bit
- 12G SDI loop out
- Upgrade firmware via USB port
- Check the device status by NMS via PC Mac
Technical Specifications
| Video Input | Digital: 1x 12G/3G SDI BNC, 4 x 3G SDI BNC |
| Audio Input | Digital: SDI embedded audio, 24 bit |
| Audio Output | Digital: HDMI embedded audio, 24 bit |
| Power | 12 V, AC Adapter: 100 VAC – 240 VAC, 50 Hz /60 Hz, universal input |
| Micro USB | Upgrade firmware via USB port |
| Storage Temperature | -40 °F to 140 °F (-40 ℃ to 60 ℃) |
| Humidity | 10 % RH to 90 % RH |
| Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Size | 5.0 in × 4.0 in × 1.18 in (12.7 cm × 4.16 cm × 3.0 cm) |
| Weight | 14.10 oz (400 g) |
