| Use | Cable breakpoint fault finding |
| Network | OTDR |
| Application | FTTH FTTB FTTC |
| Wavelengths | 1310/1550 nm |
| Color | Blue |
| Fiber Type | Single fiber single mode |

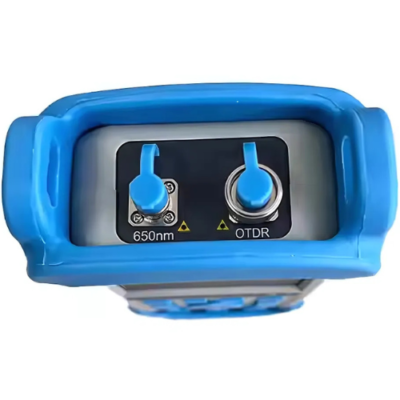

| Connector Type | SC, FC, LC, ST |
| Type | OTDR |
| Network | Wireless LAN, wired LAN, Wi-Fi, 4g, 3G |
| Sensing Fiber | Single mode fibers |
| Connector | FC (ST/SC interchangeable) / PC |
| Connectivity | USB / SD card |
| Visible Fault Locator | Wavelength: 650 nm; Farthest distance test: 3.1 mi (5 km) |
| Stable Light Source Module | Wavelength (±20 nm): the work of OTDR with wavelength |
| Dynamic Range (dB) | 28/26 dB or 32/30 dB |
| Attenuation Detect Accuracy | ±0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Pulse Duration (ns) | 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000 ns |
| Event Dead Zone | 6.56 ft (200 cm) |
| Sampling Resolution (m) | 0.52 ft to 16.4 ft (0.16 m to 5 m) |
| Distance Measure Accuracy (m) | ± (3.28 ft + 5 x 10^-5 x distance + sampling space) |
| Max Measuring Distance (km) | 0.62 mi to 74.5 mi (1 km to 120 km) |
| Data Storage | >10000 records |
| Averaging Time | 5s, 15s, 30s, 1min, 2min, 3min |
| Battery Life | > 8 Hours |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Relative Humidity | 0 % to 95% (non-condensing) |
| Dimension | 8.3 in x 4.4 in x 2.6 in (21 cm x 11.2 cm x 6.7 cm) |
| Weight | 2.2 lb. (1 kg) |
