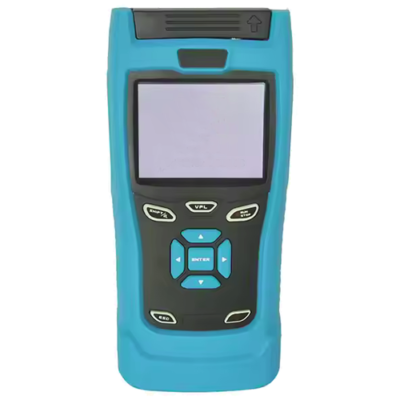

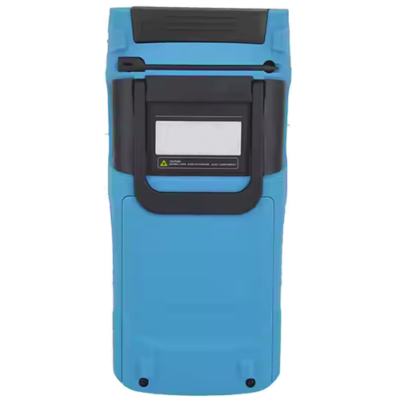

Single Mode OTDR with Accurate Fault Location for Fiber – The Inventory Master

Name: Single Mode OTDR with Accurate Fault Location for Fiber – The Inventory Master - The Inventory Master
SKU: TIMTDRT-296

Fiber optic OTDR tester for single-mode networks. Features accurate fault location with user-friendly operation. Ideal for network maintenance.

SKU: TIMTDRT-296 Category: Industrial Ethernet

Features

Use	Fiber Patch Cord Testing
Product Name	Optical Time Domain Reflectometer
Application	FTTX Systems
Network	None
Light Source Type	LD
Display	3.5′ in TFT LCD touch screen
Optical Interface	FC/UPC (FC/SC optional, UPC/APC optional)
Wavelengths	1310 nm/1550 nm
VFL Wavelength	650 nm
VFL Output Power	2 dBm to 3 dBm
VFL Test Distance	1.8 miles (3 km)
Pulse Width	5 ns to 20480 ns, Auto
Data Storage	>60000 test traces
Communication Interface	USB
Measurement Duration	15 s, 30 s, 1 min, 2 min, 3 min
Event Blind Zone	5.9 ft (1.8 m)
Attenuation Blind Zone	32.8 ft (10 m)
Distance Uncertainty (ft)	± (3.3 ft + 5 x 10^-5 x Distance + Sampling Interval)
RJ45 Cable length	984.3 ft (300 m)
