The Inventory Master 125 KHz And 13.56 MHz Of Dual Frequency Reader Module

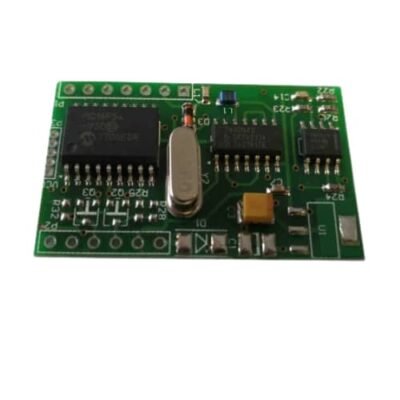

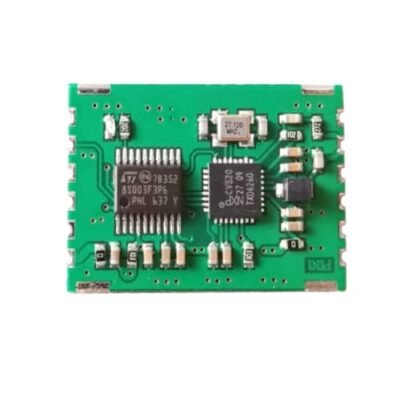

The Inventory Master 125 KHz and 13.56 MHz of Dual Frequency Reader Module is a Mifare, ISO 14443-A read/write device with a standard antenna, whose typical operating distance is 50 mm to 60mm.

SKU: TIMLMOD-146 Category:

Technical Specifications

Frequency125 KHz and 13.56 MHz
Working Voltage3.3 V to 5 V
Support CardsEM 4200 or TK 4100, Mifare S 50, S 70, Ultralight, Mifare Pro
Working Current< 70 mA
Reading Range0 in to 3.14 in (0 cm to 8 cm)
AntennaExternal
ProtocolISO 14443-A
Operating Temperature14 °F to 122 °F (-10 °C to 50 °C)
Storage Temperature-4 °F to 176 °F (-20 °C to 80 °C)
Size1.54 in x 0.75 in x 0.35 in (39 mm x 19 mm x 9 mm)
Weight3.52 oz (10 g)
