Overview

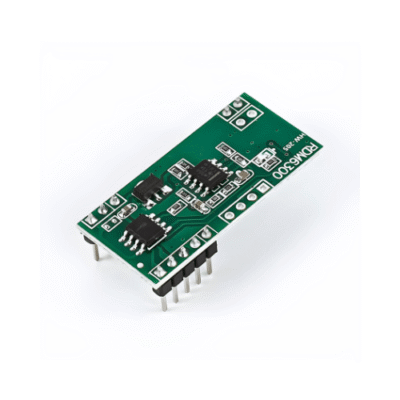

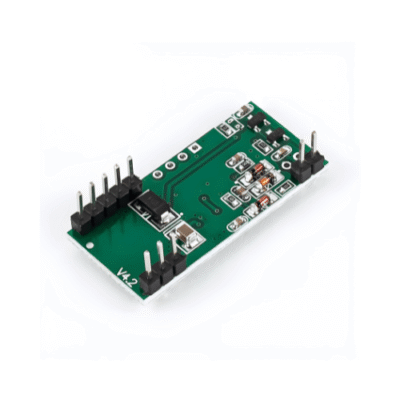

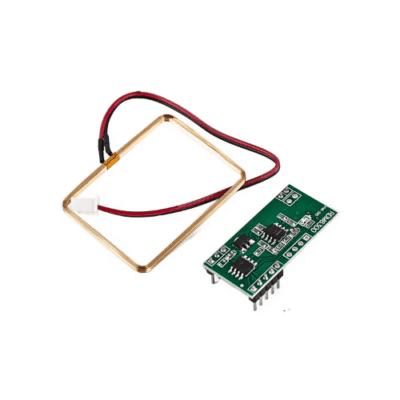

The Inventory Master 125 Khz RFID Reader Module UART Access Control System is convenient in connecting to the power supply serially after the motherboard, this device swiftly transmits card numbers via UART to the receiver within its read range. With high sensitivity, stability, and operating current, it suits various applications like access control, time and attendance, charges, anti-theft, and Patrol.
Features
- UART output for easy connectivity
- High-sensitivity RFID card reading
- Compatible with access control systems
- Stable performance for reliable operation
- Suitable for various RFID applications
Technical Specifications
| Frequency | 125 KHz |
| Baud Rate | 9600 bit per second |
| Interface | TTL level RS 232 format |
| Working Voltage | DC 5 V (+ or –5%) |
| Working Current | <50 mA |
| Distance | 65.61 ft to 164.04 ft (20 m to 50 m) |
| Receive Distance | 0.78 in to 1.96 in (20 mm x 50 mm) |
| Single Gross Weight | 1.41 oz (40 g) |
