Technical Specifications
| Frequency Range | 920 to 925 MHZ or 865 to 868MHZ |
| RF Output | 0 to 30 dbm（adjustable） |
| Communication Interface | RJ45, RS 232 or wireless transmission |
| Reading Distance Width | 39.37 in to 157.48 in (1 to 4 m) adjustable |
| Housing Material | Metal, ABS plastic |
| GP I/O Interface | 12 pin + 4 pin |
| Frequency | 860 to 960 MHz |
| Protocol | ISO 18000 6C |
| Exterior | Body beige or silver gray Panel beige or silver gray can be customized |
| Dimension | 14.56 in × 2.44 in × 58.43 in (370 mm x 62 mm x 1484 mm) |
| Operation Temperature | 14 °F to 122 °F (-10 ℃ to + 50 ℃) |
| Operating Voltage | AC220 V ± 10 ％ |
| Power | 20 W |
| Accessories | Audible alarm |

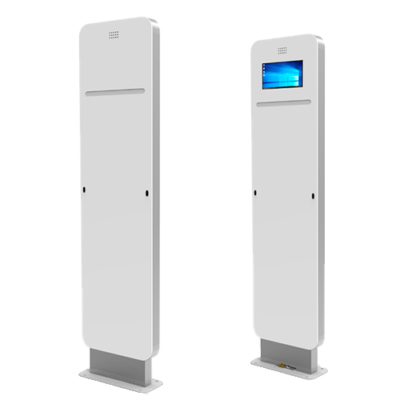

| Android System (Optional) | Optional external touch screen (10.41 inch) Android operating system 450TP） |
| Installation Method | No slotting, with 59.05 in (1.5 m) stainless steel cable trough |
| Weight | 77.16 (35 kg) |
| Single Package Size | 669.29 in × 17.71 in × 13.77 in (1700 cm X 45 cm X 35 cm) |
| Single Gross Weight | 149.91 Ib (68.000 kg) |
