Overview

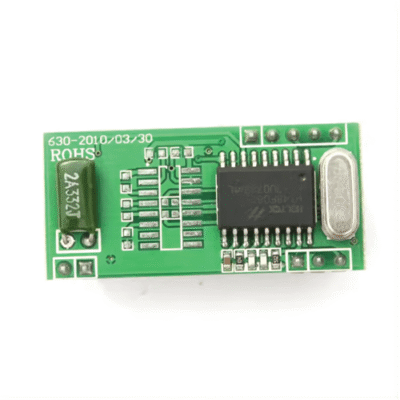

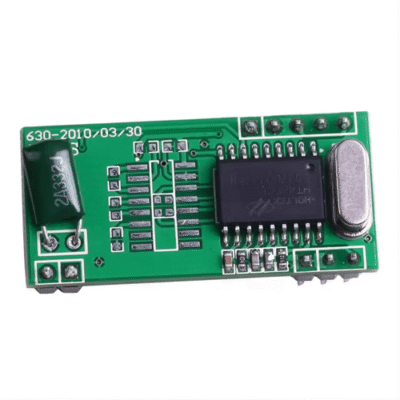

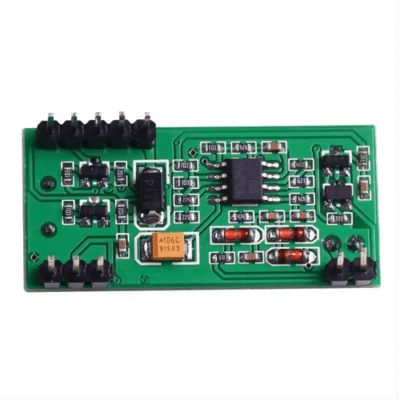

The Inventory Master Access Control Reader Module of 125 KHz is a 125 KHz read-only module for EM 4100 and TK 4100 125 KHz cards that can read and output CSN card numbers. It has the option of Wiegand 26, RS 232, and TTL output formats.
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 7815 |
| Card Support | EM4100 or TK4200 or EM4200 Card |
| Power Supply | 5 V and 3.3 V |
| Reading Distance | 0 in to 3.14 in (0 cm to 8 cm) |

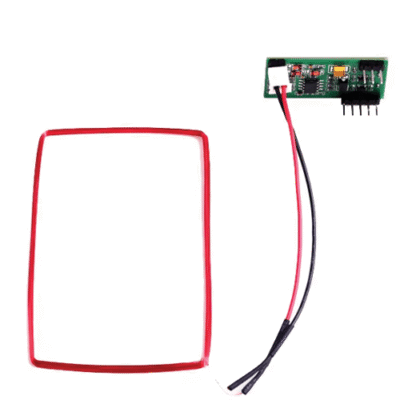

| Antenna | External |
| Protocol | ISO 14443-A |
| Working Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Dimension | 1.53 in × 0.74 in × 0.35 in (39 mm x 19 mm x 9 mm) |
| Weight | 0.75 oz (0.02 kg) |
