Overview

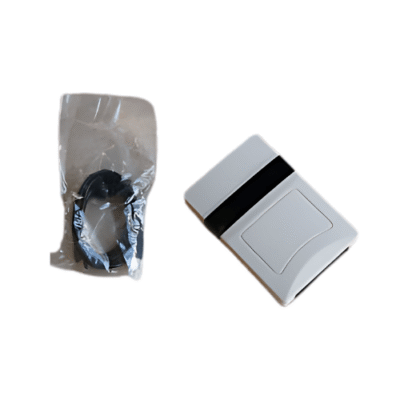

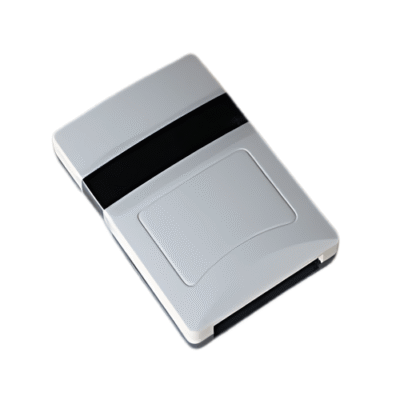

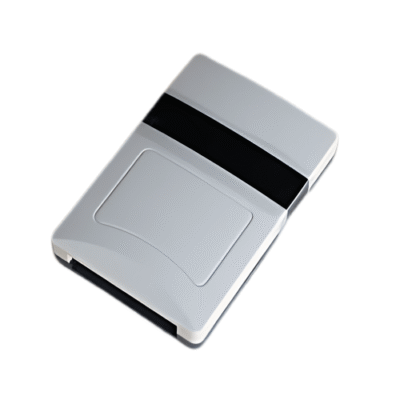

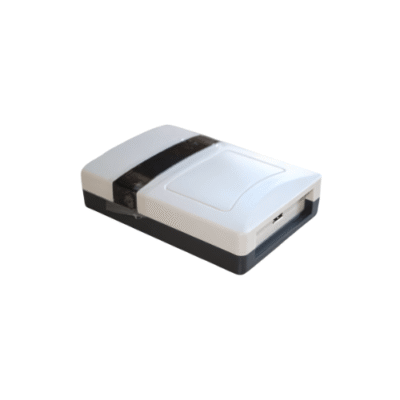

The Inventory Master Desktop USB UHF RFID Card Reader for RFID Tag is a high-performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read or write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Features
- Self-intellectual property
- Supports UHF EPC Gen2 and ISO18000-6B
- Advanced tag processing algorithm
- Built-in antenna with 39.37 in (1000 mm) effective distance
- Low power dissipation design
- USB interface for computer power
- Provides DLL and source code demo
Technical Specifications
| Frequency | 902 MHz to 928 MHz Frequency Band |
| Protocol | EPC, Class1, G2, ISO18000-6c |
| Power | 9 V |
| Interface | RS485, RS232, USB, Tcp IP |
| Power Supply | 3.3 V to 5.5 V |
| Current Dissipation | 90 mA (150 mA Max) |
| Reading Distance | 31.49 in (80 cm) |
| Effective Distance | 39.37 in (1000 mm) |
| Operating Temperature | -4 °F to +131 °F (-15 ºC to +55 ºC) |
| Storage Temperature | -4 °F to +140 °F (-20 ºC to +60 ºC) |
| Dimension | 6.29 in x 4.33 in x 1.57 in (160 mm x 110 mm x 40 mm) |
| Net Weight | 9.87 oz (280 g) |
