Overview

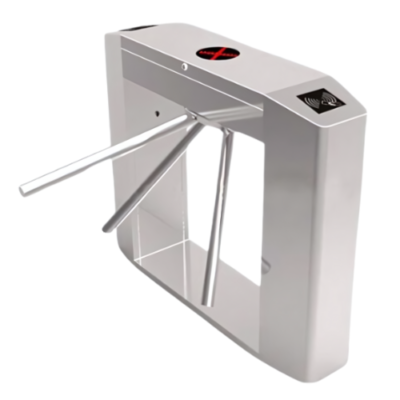

Factory price security passage portal HZ-1261, featuring a semi-automatic tripod turnstile made from durable GB 304 stainless steel. Compact dimensions of 16.53 x 12.99 x 38.58 inches, with a passage width of ≤ 23.62 inches. Supports various control devices (IC/ID card, barcode card), ultra-quiet operation, and super bright LED indicators. Equipped with remote control via RS485, automatic access, and reset functions. CE approved, operates in temperatures from -15 to 60°C, with a passing speed of 40 persons/min.
Features
- GB 304 stainless steel sheet metal forming, beautiful, durable
- Brake lever steering one-way, two-way (optional)
- Control mode manual/ automatic (optional)
- Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
- Working environment indoor (outdoor use shall stand awning)
- Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;
- Super bright passage indicator:directional design of ultra- bright LED lights to indicate a more eye-catching;
- Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates;
- Multiple modes of function: by setting the switch can be set to the gates normally open, normally closed two modes of operation;
- Access memory function: After several pedestrian’s card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
- Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements; (automatic type)
- Anti-collision function: no credit card pedestrian pushes the brake lever, lock gates;
- Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates;
- Automatic reset function: by credit card is not specified, within the time gates back in situ cancel access.
Technical Specifications
| Material | Stainless Steel 304 |
| Certificate | CE Approved |
| OEM | Accepted |
| Type | Barrier |
| Operation | Half automatic |
| Power Supply | AC 220 V |
| Temperature | 5 °F to 140 °F (-15 ℃ to 60 ℃) |
| Humidity | Less than 95 %, without concretion |
| Passage Width | Less than or equal to 23.62 in (600 mm) |
| Passing Speed | 40 persons per min |
| Power Consumption | 100 W |
| Input Interface | +12 V electrical signal or impulse signal |
| Drive Current | More than 10 mA |
| Distance | 3937.0 ft (<1200 m) |
| Communication Interface | RS485 |
| Dimension | 16.53 in X 12.99 in X 38.58 in (420 mm X 330 mm X 980 mm) |
