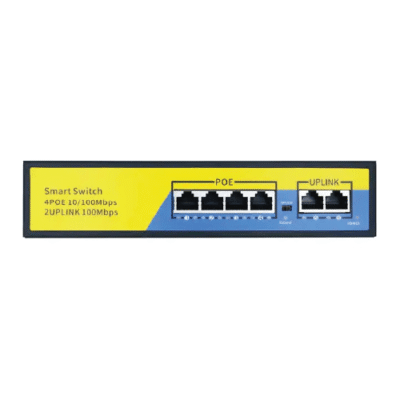

Features
- 4 x 10/ 100 mbps POE port, 2 x 10/ 100 mbps UP-Link port
- 100 m Transmission Distance, 250 m after use extend function
- Support IEEE802.3AF / AT
- Whole Power: 72 W (52 V 1.4 A)
- Each port max. power supply reached 30W
Technical Specifications
| Power Supply | Built-in and External are available |
| Output Power | 15.4 W / 30 W |
| POE Port | 1 to 4 support IEEE802.3AF/AT |
| Power Pin | Both (1/2)+, (3/6)- and (4 / 5)+ (7 / 8)- |
| POE Type | End-span |
| Whole Power | ≤72 W (52 V 1.4 A) |
| Network Medium | 10 / 100 BASE-TX: 5 class and above non shielded twisted pair |
| Power Distance | ≤ 9842.5 in (250 m) |
| Switch Capability | 1.2 Gbps |
| Data Distance | ≤ 9842.5 in (250 m) |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10 BASE-T:14880PPS / port, 100BASE-tx: 14800 pps / port |
| MAC Address | MAC address table 1K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | LINK / ACT.100 Mbps, POE Status Indicator, Power indicator, Extender |
| Size | 7.95 in x 5.51 in x 1.77 in (202 mm x 140 mm x 45 mm) |
