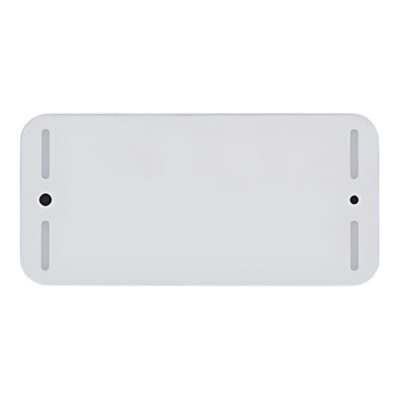

The Inventory Master High Performance UHF RFID Portal Reader, Linux OS 4.1.15 Top Mounted RFID Portal For Logistics Industry

High-performance UHF RFID portal reader for the logistics industry, operating on Linux OS 4.1.15. Top or side mounted with a sleek aluminum and acrylic design. Supports ISO 18000-6C protocol, adjustable output power (8-33 dBm), and efficient power dissipation (45W). Features RS-232(DB9) and RJ45 communication interfaces. Optimal for installation heights between 9.84 ft to 16.40 ft, withstanding temperatures from -4°F to 140°F. Dimensions: 17.32 in x 8.26 in x 1.57 in; weight: 16.53 lbs. Reliable performance in 10%-95% RH environments.

SKU: TIMPRT-126 Category:

Technical Specifications

ProtocolISO 18000 6C
MaterialAluminum, acrylic
Installation ModeTop mounted or side mounted
Power DissipationAbout 45 W
Communication InterfaceRS 232(DB9), RJ45
Output Power8 dbm  to 33 dbm (adjustable)
Power SupplyAC 220 V ± 10 % 47 to 63 Hz
Humidness10 % to 95 % RH no condensation
Installation Height9.84 ft to 16.40 ft (3 m to 5 m)
Weight16.53 lbs (7.5 kg)
Size17.32 in x 8.26 in x 1.57 in (440 mm × 210 mm × 40 mm)
Operating Temperature-4 °F to 140 °F (-20 ℃ to 60 ℃)
Storage Temperature-22 °F to 158 °F (-30 °C to 70 °C)
Frequency Range902 MHz to 928 MHz
