Overview

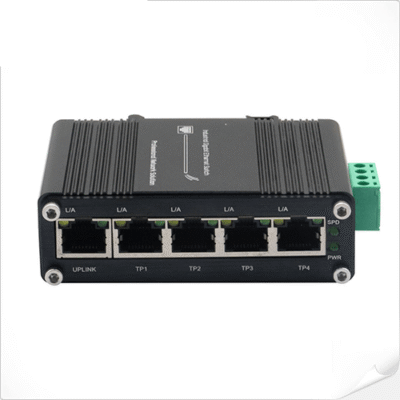

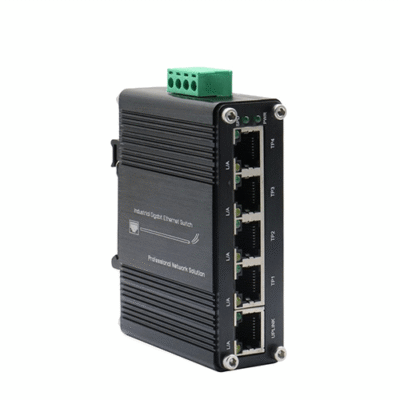

The Inventory Master industrial gigabit ethernet switch is a robust networking solution designed for industrial environments. It ensures reliable and high-speed data transmission, even in harsh conditions. Featuring rugged construction, it withstands extreme temperatures, vibrations, and electrical interference. Equipped with multiple ports, it facilitates seamless communication between industrial devices, enhancing operational efficiency and reliability in industrial applications.
Features

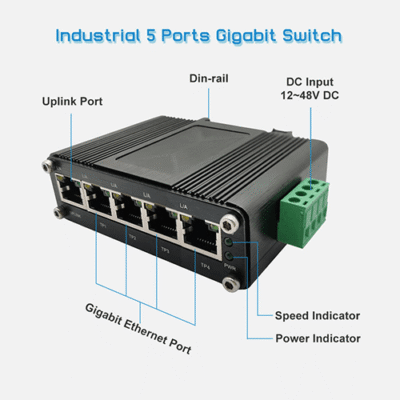

- 5 ports supporting 10 / 100 / 1000 BASE-T RJ45 with auto-MDI / MDI-X function
- Auto-negotiation for 10 / 100 Mbps half / full duplex and 1000 Mbps full duplex
- Wide range power input (12 V DC to 48 V DC)
- Supports 802.3 x Flow control and IEEE 802.3 Az (EEE)
- DIN-Rail and Wall-mount installation options
- Industry-standard design
- IP 40 dustproof and close design
- rugged metal case
Technical Specifications
| Connector | 5 10 / 100 / 1000 BASET RJ45 auto-MDI / MDI-X ports |

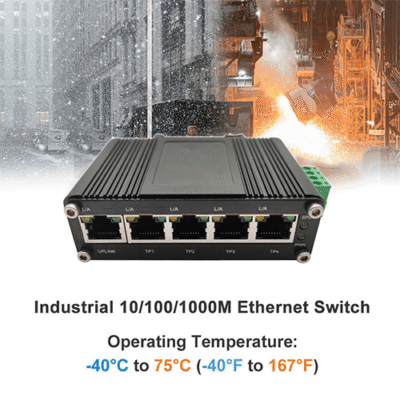

| Operating Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | >200,000 hrs |
| Input Power | 12 V DC to 48 V DC (Terminal Block) |
| Power Consumption | <6 W |
| Power Input Overload | Automatic Resettable |
| Reverse Polarity | Present |
| Casing | Aluminium Case |
| Mounting Options | DIN-Rail / Wall-mount |
| PWR | Power |
| L / A | Link / Activity |
| SPD | Data Rate |

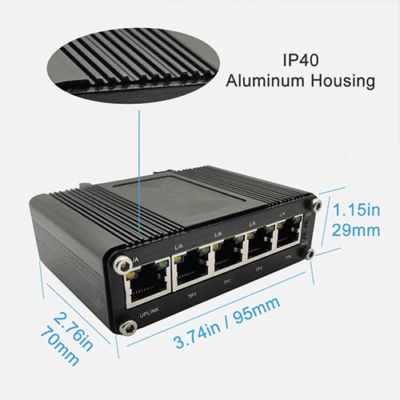

| Dimensions | 3.74 in × 2.75 in × 1.14 in (95 mm x 70 mm x 29 mm) |
| Weight | 0.55 lb (250 g) |
