Overview

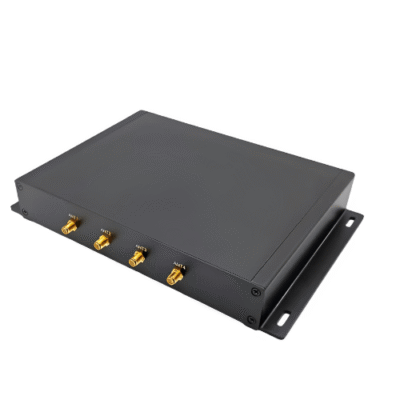

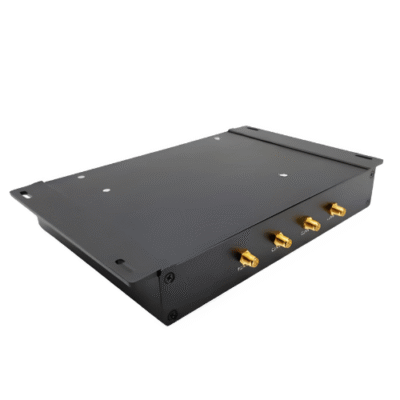

The Inventory Master management high performance 4 ports wifi uhf rfid fixed reader android store inventory management is a high-performance UHF RFID fixed reader. It was designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and ease installation.
Technical Specifications
| Shell Material | Aluminum |
| CPU | Built-in 4 core Cortex-A9, 1.6 GHz Android 4.4 |
| Memory | 1 GB SRAM and 8 GB ROM built-in |
| UHF Chip | Impinj R2000 RFID solution and bi-amplifier synthesis circuit |
| Interfaces | Standard-WG26/34, RS232/485, USB, TCP/IP, Bluetooth & WIFI (optional) |
| Protocol | EPC C1G2, ISO18000-6B/C, GB/T29768-2013 (optional) |
| Frequency | 902 MHz to 928 MHz, 865 MHz to 868 MHz |
| RSSI Support | Perceivable signal strength |
| Baud Rate | 115200 bps |
| Network Interface | 10M/100M adaptive |
| RF Output | 0 dBm to 33 dBm ± 1 dB (MAX) |
| Reading Distance | 0 ft to 65.6 ft (0 m to 20 m) (Depending on antenna) |
| Reading Speed | >700 times per s |
| Frequency Stability | ≤±20 ppm |
| Antenna Port | 4 external SMA antenna ports, supporting automatic antenna fine-tuning |
| Power Supply | DC +9 V to +24 V |
| Protection Grade | IP55 |
| Operating Temperature | -4 °F to +158 °F (-20 °C to +70 °C) |
| Operating Humidity | <95 % RH 77°F (+25 °C) Non-condensing |
| Dimension & Weight | 9.25 in x 6.1 in x 1.38 in (23.5 cm x 15.5 cm x 3.5 cm) |
| Weight | 2.2 lb (1 kg) |
