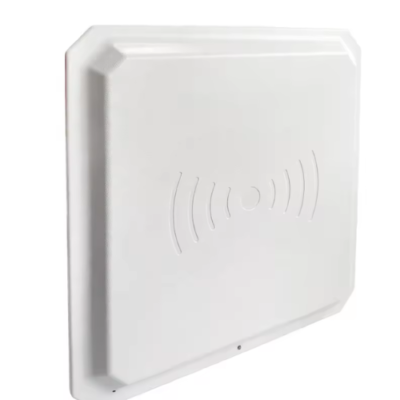

The Inventory Master – UHF RFID Reader Long Range Access Control RFID Reader And Active Card– With The Frequency From 860 MHz to 960 MHz

The Inventory Master product has a working mode that is Passive.

SKU: TIMUHF-889 Category:

Overview

The Inventory Master product has a working mode that is Passive. The protocol supports ISO18000-6C and ISO18000-6B. Support RS232, RS485, Wiegand 26 or 34 interface. Support auto-running, interactive and trigger-activating work modes. Low power dissipation with a single +12V DC power supply. Application is Parking and Warehouse management etc.



Technical Specifications

Frequency Range860 MHZ to 960 MHZ (Optional)
ProtocolISO 18000-6C
Rated PowerDC12V, 25W
Antenna1 Port Duplex Antenna
Transmitted PowerMax 30dBm Adjustable
InterfaceLAN, RS232, RS485, Wiegand26/34, IEEE 802.11
Air InterfaceEPC global UHF ISO-18000-6C (EPC G2), ISO-18000-6B
Protection GradeIEC IP65
ISO StandardISO/IEC 18000-6C
Read Distance32.81 ft to 49.21 ft (10 m to 15 m)
Size8.66 in x 8.27 in x 2.36 in
(220 mm x 210 mm x 60 mm)
