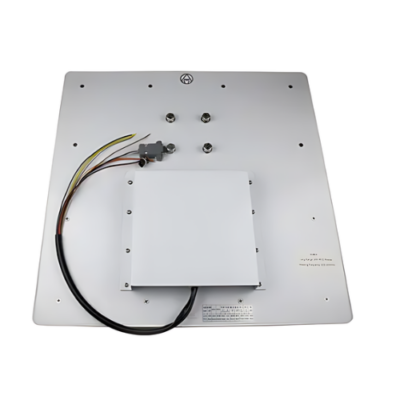

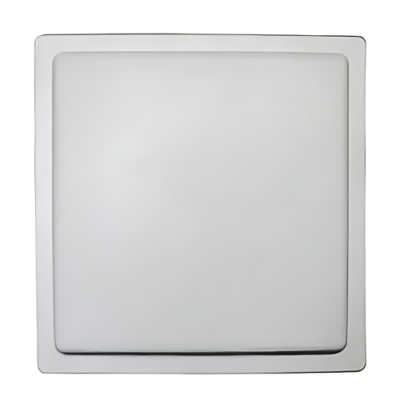

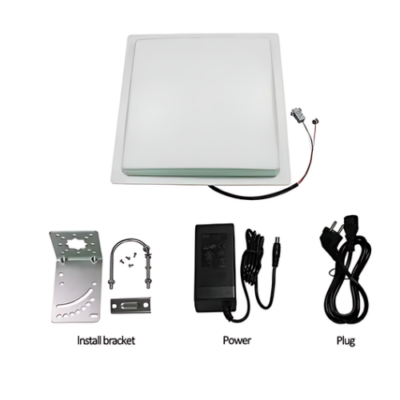

The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz
The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz
The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz
  1. The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz
  2. The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz
  3. The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz

The Inventory Master -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz

This UHF RFID Reader integrates seamlessly with Raspberry Pi for efficient parking management. Versatile, reliable, and cost-effective.

SKU: TIMUHF-888 Category:

Technical Specifications

Working Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz
 Protocol ISO18000-6C (EPC C1 GEN2)
 Radiofrequency Power 0 dBm to 30 dBm (Adjustable)
 Interface RS232, RS485, Wiegand
 Software & SDK DEMO and C#, VC, VB, Java, DELPH, etc.
 Encryption Can be directly encrypted, copy prevention.
 Industrial Lightning Protection 6000 V industrial lightning protection
 Low-Temperature Protection Northeast, Northwest extremely cold region, low-temperature protection
 Frequency Modulation Way Broad spectrum frequency hopping or fixed frequency
 Input Or Output Port Two-way relay output (customized), one-way trigger input
 Antenna Gain 12 dBi polarization
 Working Way Buzzer
 Power 12 V per 3 A Adaptor
 Shell Material ABS
Reading Distance0 ft to 82.02 ft (0 m to 25 m)
 Item Size17.72 in x 17.72 in x 1.97 in
(450 mm x 450 mm x 50 mm)
 Net Weight11.02 lb (5 kg)
