Overview

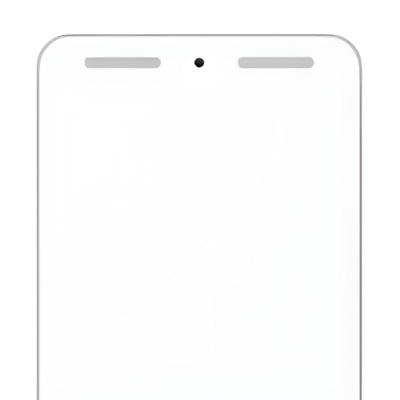

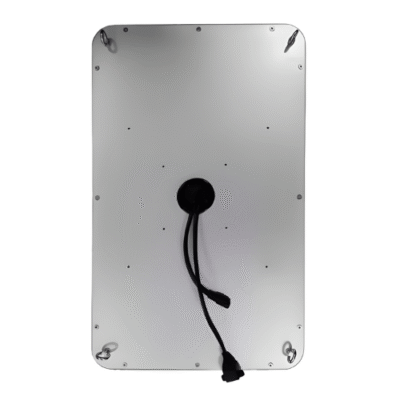

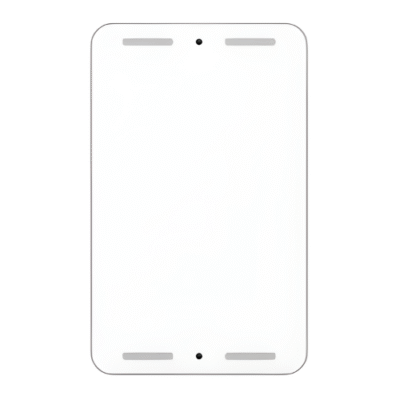

The Inventory Master UHF RFID top mounted portal Anti-theft system is a high-performance UHF top-mounted smart device. The working frequency band covers 860 MHz to 960 MHz. A built-in phase-controlled high-gain antenna array is inside. It has the characteristics of fast and accurate positioning, automatic identification of moving direction, contact-less triggering, long recognition distance, strong multi-label recognition ability, strong anti-interference ability, good scalability, and easy installation etc. It can be widely used in clothing stores, supermarket retail, book file management, personnel access management, fixed asset management, intelligent warehousing management.
Features
- Automatic direction detection
- Expanded integration
- Easy installation
- Antenna field control
- Multi label positioning
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| Protocol | ISO18000-6C |
| Class Of Protection | IP53 |
| Operating Mode | Fixed frequency or frequency hopping optional |
| GPIO | 2 out 2 in |
| Transmit Power | 30 dBm ± 1 dB (MAX） |
| Antenna Gain | ≥ 1 4dBi |
| Polarization | Circular |
| Beam Scanning Range | Channel length 26.25 ft (8 m) Width 9.84 ft (3 m) |
| Read Rate | > 200 reads |
| Network | 10 M or 100 M Ethernet |
| Power Supply | DC 12V 5A |
| OS | Linux 4.1.15 |
| Humidness | 10 % to 95 % RH no condensation |
| Operating Temperature | – 4 °F to 140 °F (- 20 ℃ to 60 ℃) |
| Storage Temperature | – 40 °F to 185 °F (- 40 °C to 85 °C) |
| Size | 21.65 in x 13.39 in x 1.57 in (550 mm x 340 mm x 40 mm) |
| Weight | 8.82 lb (4.0 kg) |
