Overview

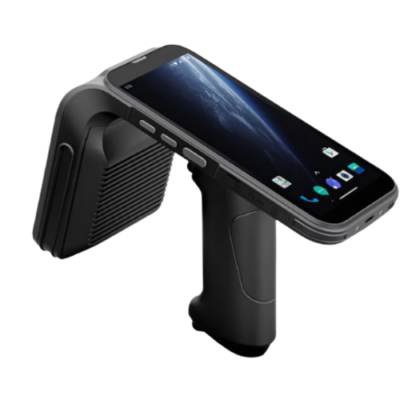

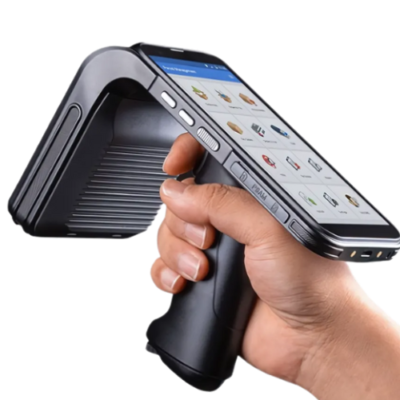

UHF Gen 2 Pistol Grip Portable Reader with Octa-core 2.3 GHz Processor is an enhanced all-in-one UHF RFID Reader, boasting an integrated self-developed Impinj E710/R2000-based UHF module that delivers industry-leading UHF performance. With its integrated design, the 246027 ensures more stable UHF performance and increased durability. Powered by the Android 11 platform and an octa-core processor, it offers optional mass internal memory and a large capacity removable battery. Additionally, the 246027 supports 2D scanning, NFC, fingerprint recognition, and other functions, making it suitable for a wide range of applications in banking, public security, warehousing, retail, logistics, and more.
Features
- Powerful Android 11 O.S.
- 5 inches / 6 inches Display
- Octa-core 2.3GHz
- 6700mAh / 13400mAh Removable Pistol Battery
- IP65 Protection, 1.5m Drop Proof
- UHF RFID (Impinj E710/R2000 Chip) Based
- Barcode Scanning (Optional)
- Fingerprint Recognition (Optional)
- NFC (Optional)
- Front & Rear Dual Camera
- Secure PSAM
- Dual-band WIFI
Technical Specifications
| Physical Characteristics | |
| Dimensions | 177 mm x 80.2 mm x 14.8 mm (6.97 in x 3.15 in x 0.58 in) |
| Weight | 626g / 22.08oz. (with battery) |
| Display | 5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080 |
| Touch Panel | Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass |
| Power | 6700mAh / 13400mAh removable pistol battery Built in 100mAh backup battery, supporting battery hot swap |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Card slot | 2 slots for PSAM card (optional); 1 slot for Nano SIM, 1 slot for Nano SIM or TF card |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver |
| Keypad | 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-) |
| Sensors | Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional) |
| Performance | |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM | 3GB + 32GB; 4GB + 64GB (Optional) |
| Expansion | Supports up to 128GB Micro SD card |
| WLAN | 802.11 a / b / g / n / ac, 2.4G / 5G dual-band |
| WWAN | 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8 CDMA2000 ECDO: BC0 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41 |
| Bluetooth | 5.0 |
| Vo-LTE | Support |
| GNSS | GPS / AGPS, GLONASS, Galileo |
| UHF RFID | |
| Engine | Impinj E710 |
| Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC global Gen 2 (ISO18000-6C), Impinj Protected Mode Supported |
| Antenna | Circular polarization; 5dBic |
| Output Power | 1W (30dBm, +5dBm to +30dBm adjustable); 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 1300+ tags / sec (Circular Polarized) |
| Max Read Range | 30m (Impinj MR6 tag, size 70 x 15mm); 32m (Impinj M750 tag, size 70 x 15mm); 33m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges and rates depend on tags and environment |
| Barcode Scanning | |
| 2D Imager Scanner | Zebra: SE4710 |
| 1D Symbology | UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS etc. |
| 2D Symbology | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
| Note | *This function is optional |
| NFC | |||
| Frequency | 13.56 MHz | ||
| Protocol | ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Protected Mode Supported etc. | ||
| Chips | Mifare tag (S50, S70), CPU card, NFC tags etc. | ||
| Range | 2-4cm | ||
| Note | * This function is optional | ||
| Camera | |||
| Front Camera | 5MP | ||
| Rear Camera | Rear 13MP Autofocus with flash | ||
| Fingerprint Recognition | |||
| Fingerprint | TLK1NC02 | ||
| Note | * This function is optional | ||
| User Environment | |
| Operating Temp. | -20 °C to 50 °C / 4 °F to 122 °F |
| Storage Temp. | -40 °C to 70 °C / -40 °F to 158 °F |
| Humidity | 5% RH – 95% RH (non condensing) |
| Drop Specification | Multiple 1.5m / 5.9ft. drops to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
