Overview

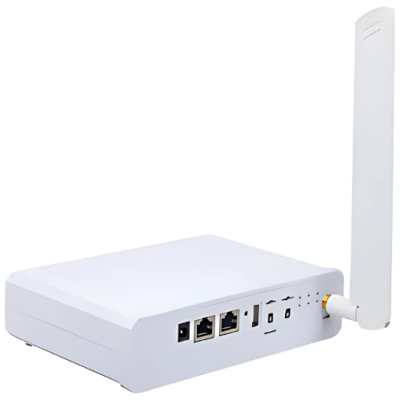

The Inventory Master Versatile Smart Home Multi-Network LoRaWAN Wi-Fi LTE IoT Gateway is an indoor gateway designed for smart home IoT applications. It connects standard LoRaWAN terminals for two-way communication and supports Ethernet, 2.4G Wi-Fi, and optional LTE for uplink communication. This device operates with the LoRa protocol for private or public network servers such as TTN and allows for seamless integration with third-party platforms via MQTT. The gateway’s robust design includes a built-in radiator for heat dissipation and supports various frequencies, making it highly versatile.
Features
• Supports 8RX 1TX LoRaWAN channels
• Uplink options: Ethernet, Wi-Fi, LTE
• Includes openwork software
• Features PoE 100M base-T Ethernet
• Built-in radiator for heat dissipation
• TF card storage method supported
Technical Specifications
| Processor | MT7628, DDR2RAM 128 MB |
| Wi-Fi Frequency | 2.400 GHz to 2.4835 GHz |
| Wi-Fi RX Sensitivity | -95 dBm (minimum) |
| Wi-Fi TX Power | 20 dBm (maximum) |
| Operating Channels | 2.4 GHz: 1 to 13 |
| LoRa RX Sensitivity | -142 dBm (minimum) |
| LoRa TX Power | 27 dBm (maximum) |
| LoRa Frequency | EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 |
| Mobile Network | LTE CAT 4 (optional) |
| Power Supply | DC 12 V-1 A |
| Power Consumption | 12 W (typical value) |
| Ethernet | RJ45 |
| Console | RJ45 (RS232) |
