Technical Specifications
| CPU | I3 I5 I7 |
| I or O Ports | VGA or HD-MI or LAN or USB or RS232 |
| Operating System | Win8 Standard ( Win10 or Win11 or Linux) |
| USB | 8 x USB3.0 + 4 x USB 2.0 |
| Interface | VGA or HDM1 or USB or RJ45 or COM or Audio |
| Power Supply | DC 12V or 19V |
| Memory | 4G or 8G or 16G or 32G or 64G (optional) |
| Hard Drive Capacity | 64GB or 128GB or 256GB or 528G or 1T (optional) |
| Internal Storage | 2 x SO-DIMM DDR4 2400 or 2666 or 3200MHz memory |
| Storage | 1 x M.2 2280 Interface support NVME and SATA Dual protocol (adaptive), (6.35 cm) 1 x 2.5-inch SATA HDD |
| Graphics Card | integrated graphic (It depends on the CPU model) |
| Display Output | HDMI or VGA (Optional DP), ransactional concurrent or Asynchronous dual display |
| Network | LAN REALTEK 8111H Gigabit Ethernet (Optional double network LAN2 Intel i219) WIFI 1 x M.2 2230 for Wifi+B |

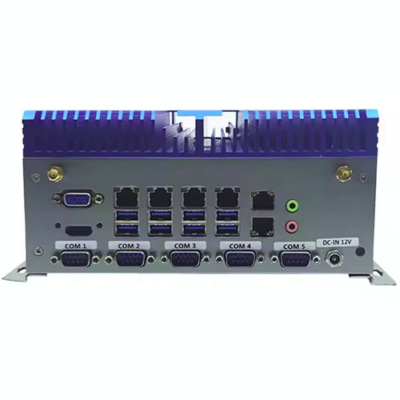

| Rear Out | 1 x DCIN, 1 x HDMI, 1 x VGA (Optional DP), 8 x USB3.0, 6 x LAN 1 x Line out + mic, 1 x CLR_CMOS, 1 x BKUP_SW (one-key reset), 5 x COM (Optional 485)
|
| Front Out | 1 x POWER, 4 x USB2.0, 5 x COM (Optional 485) |
| System | Windows 8 or 10 or 11, Linux |
| Operating Humidity | 10% to 95% RH at 40°C non-condensing |
| Operating Temperature | 32°F to 113°F, (0°C to 45°C) |
| Storage Temperature | -40°F to 176°F, (-40°C to 80°C) |
| Size | 8.27 in x 7.87 in x 4.02 in, bare computer: (210 mm x 200 mm x 102mm), 9.45 in x 7.87in x 4.02 in, With mounting foot size: (240 mm x 200 mm x 102mm) |
