Overview

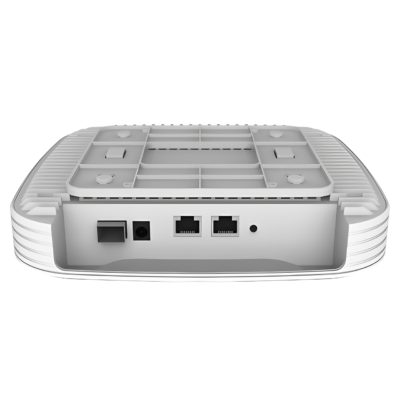

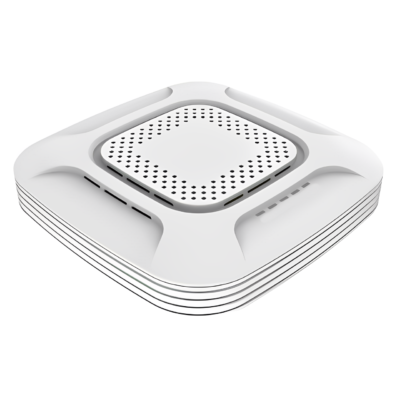

The Inventory Master Wi-Fi 7 SFP ceiling access point with 10 Gbps tri-band speed is a high-performance indoor access point that supports Wi-Fi 7 technology. It delivers tri-band wireless services across 2.4 GHz, 5 GHz, and 6 GHz frequencies, offering a total of 8 streams: 4×4 (2.4 GHz), 2 × 2 (5 GHz), and 2 × 2 (6 GHz). The maximum data rates for each band are 1148 Mbps (2.4 GHz), 2882 Mbps (5 GHz), and 5764 Mbps (6 GHz), reaching a combined speed of nearly 10 Gbps. Designed for high-density environments, it can efficiently support up to 384 users in real-world conditions.
Features
- Support wider channels, up to 320 MHz channel.
- Supports 4096 QAM, further improving transmission efficiency.
- Supports MLO (Multi-Link Operation) multi-link connection function, multi-frequency concurrency, providing a better user experience.
- Supports 10 Gbps fiber optic interface and network interface at the same time, giving full play to device performance.
- Supports both PoE (802.3 bt) power supply and DC power supply, making installation and deployment more convenient.
Technical Specifications
| 6G Frequency | 5.925 GHz to 7.125 GHz |
| 5G Frequency | 5.1 G and 5.8 G (depend on country or region) |
| Interface | 1 x Reset button, press 10 seconds to revert to default setting |
| 6G Wi-Fi Standard | 802.11 be |
| DDR 4 | 512 MB × 2 |
| Frequency | 2.4 GHz to 2.484 GHz |
| Flash | Nor 32 MB (reserved), Nand 128 MB |
| LED Light | Sys green, always on after system startup |
| Power Consumption | ≤ 60 W |
| Power Supply | PoE 802.3 bt, DC 2.0 54 V or 1 A |
| Size | 8.58 in × 1.81 in (21.8 cm × 4.6 cm) |
| Weight | 1.21 Ib (0.55 kg) |
