Overview

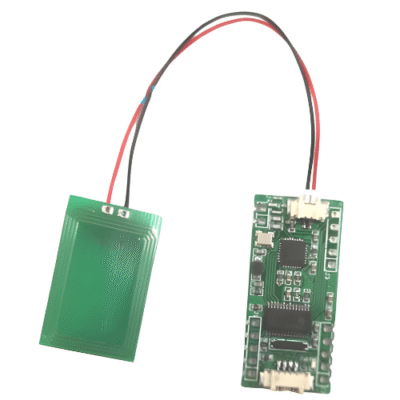

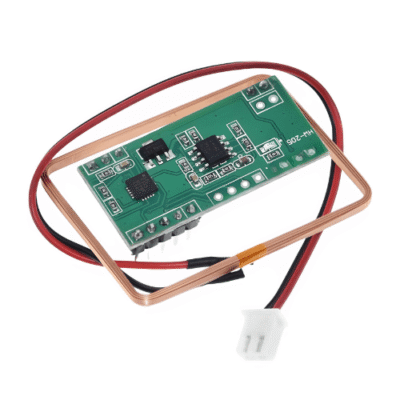

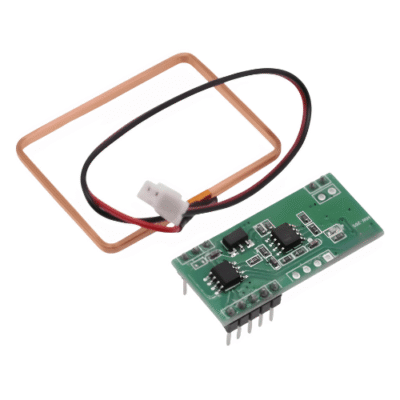

The Inventory Master high performance RFID reader modules is a 125 KHz read-only module for EM4100 or TK4100 125KHz cards, which can read and output CSN card number. It has option of Wiegand26, RS232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO14443 A or B, ISO15693 and ISO18092 |
| Type | RFID Module |
| Card Type | CPU, HID, EM, Tk4100 Em4305 |
| Interface | USB, Serial Port, RS232, RS485 Wg 26 or 34 |
| Distance | >8 cm |
| Support Chips | Em4200, Tk4100, T5577, Em4305, NFC, UL |
| Protection Level | IP65 |
| Software | Supply Sdk and Demo for Free |
| Sample | Free |
| Reading Range | 0-8 cm |
| Supporting Card | Em4200 or Tk4100 |
| Power Supply | 5 V or 3.3 V |
| Antenna | External, Variety of Optional Specifications |
| Connection | Metal Pin Connection |
| Read or Write | Read Uid Only |
| Connector | LC Simplex |
| Application | Table PC, Lift controlPOS terminalAccess controlAttendance applicationRecreational MachineBarrier gate/rapid-Open gateAdvertising tablet PCMedical Electronic EquipmentIdentification card scannerSmart game EquipmentHand-held intelligent terminalPOS consumption endpoint |
| Operating Temperature | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Size | 1.5 in X 0.7 in X 0.3 in (39 mm X 19 mm X 9 mm) |
