Overview

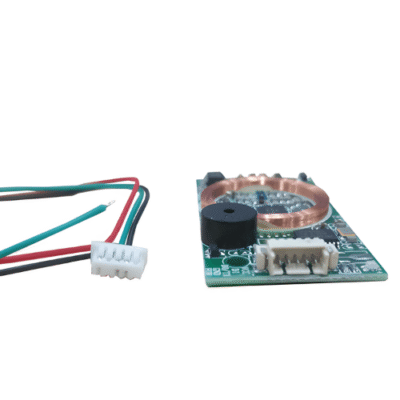

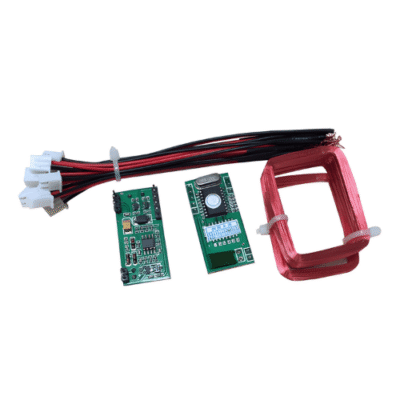

The Inventory Master 125 khz RFID Reader Access Control Module is a 125 KHz read-only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card number. It has options of Wiegand26, RS232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Type | RFID Module |
| Protocol | ISO 14443A or B, ISO 15693 and ISO 18092 |
| Card Type | CPU, HID, EM, Tk 4100 Em 4305 |
| Interface | USB, Serial Port, RS 232 or RS 485 or Wg 26 or 34 |
| Reading Distance | > 0.03 ft (8 cm) |
| Application | Hospital Library Company Bank Store |
| Protection Level | IP 65 |
| Reading Range | 0 ft to 0.03 ft (0 cm to 8 cm) |
| Supporting Card | EM 4100 TK 4200 EM 4200 Card |
| Antenna | External, Variety of Optional Specifications |
| Connection | Metal Pin Connection |
| Read Or Write | Read Uid Only |
| Reading Distance | > 0.16 ft (5 cm) |
| Power Supply | DC 5 V or 3.3 V |
| Color | Standard |
| Application | Implanting to devices such handheld terminal |
| Operating Temperature | -14 °F to 158 °F (-10 °C to 70 °C) |
| Module Size | 1.54 in X 0.75 in X 0.35 in (39 mm X 19mm X 9 mm) |
